• First-aid kit
• Vehicle tool kit
• "Minispare" emergency spare wheel/ collapsible spare wheel

First-aid kit

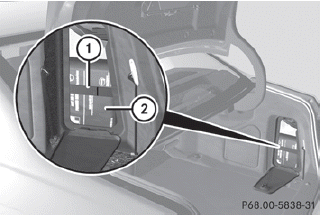

Sedan: the first-aid kit is in the right-hand stowage compartment in the trunk.

•► Open the trunk lid.

•► Slide down the parcel net.

•► Open the stowage compartment.

•► Release strap 1.

•► Remove first-aid kit 2.

Wagon: depending on the vehicle's equipment, the first-aid kit is in the parcel net or behind the side trim panel.

•► Open the tailgate.

In the parcel net

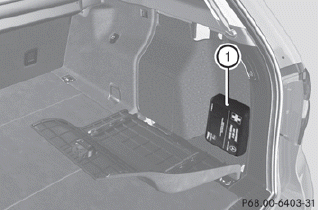

Behind the side trim panel

•► Open the right-hand side trim panel if the first-aid kit is in the side trim panel.

•► Remove first-aid kit 1.

Check the expiration date on the first-aid kit at least once a year. Replace the contents if necessary, and replace missing contents.

Vehicle tool kit

The vehicle tool kit can be found in the stowage well under the trunk floor/cargo compartment floor. Depending on the vehicle equipment, the vehicle tool kit is on the lefthand side or the right-hand side in the stowage well under the trunk floor/cargo compartment floor.

•► Sedan with TIREFIT kit: lift the trunk floor up

•► Wagon with TIREFIT kit: remove the seat cushions of the folding bench seat

•► Lift up the floor of the cargo compartment.

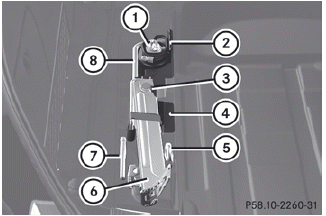

Example: vehicle tool kit in the left-hand stowage space

1. Tire sealant filler bottle
2. Folding wheel chock
3. One pair of gloves (under jack)
4. Tire inflation compressor
5. Towing eye
6. Jack
7. Alignment bolt
8. Lug wrench

•► Sedan with spare wheel/"Minispare" emergency spare wheel: lift the trunk floor up

•► Wagon with spare wheel/"Minispare" emergency spare wheel: remove the seat cushions of the folding bench seat

•► Lift up the floor of the cargo compartment

1. Vehicle tool kit tray
2. Stowage well
3. Spare wheel/"Minispare" emergency spare wheel

The vehicle tool kit contains:

 - Folding wheel chock
 - Fuse allocation chart
 - Jack
 - Alignment bolt
 - One pair of gloves
 - Lug wrench
 - Towing eye

•► Vehicles with a collapsible spare wheel: lift up the trunk floor

1. Towing eye
2. One pair of gloves
3. Jack
4. Folding wheel chock
5. Alignment bolt
6. Sheet for faulty wheel
7. Tire inflation compressor
8. Lug wrench
9. Fuse allocation chart

"Minispare" emergency spare wheel/ collapsible spare wheel

"Minispare" emergency spare wheel/ collapsible spare wheel

Opening the stowage well

Sedan: the emergency spare wheel can be found in the stowage well under the trunk floor.

•► Lift the trunk floor upwards

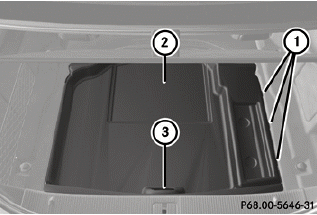

Example: well insert

•► Release tabs 1 on the right of well insert 2.

•► Reach into recess 3 of well insert 2, swing the insert up and remove it.

Wagon: the emergency spare wheel is located in the stowage well under the cargo compartment floor.

•► Remove the seat cushions of the folding bench seat

•► Lift up the floor of the cargo compartment.

Removing the emergency spare wheel:

Sedan

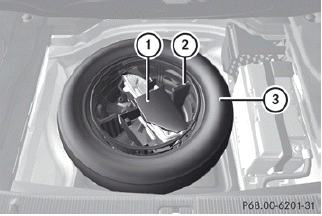

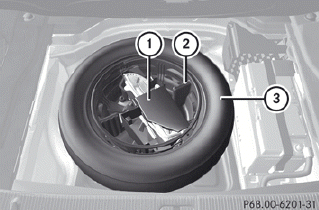

Example: Sedan

•► Remove vehicle tool kit tray 1.

•► Turn stowage well 2 counter-clockwise and remove it.

•► Remove "Minispare" emergency spare wheel 3.

Removing the emergency spare wheel:

Wagon

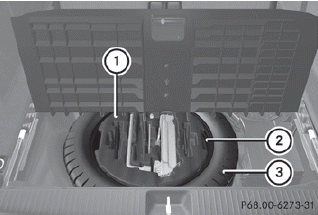

Example: emergency spare wheel

•► Remove vehicle tool kit tray 1 by recess 2.

•► Remove "Minispare" emergency spare wheel 3.

Removing the emergency spare wheel:

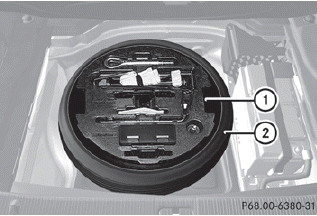

AMG vehicles

•► Reach into cutout 1 in the tool holder and lift it up.

•► Remove collapsible spare wheel 2.

For further information on changing a wheel and mounting the spare wheel

Stowing a used collapsible spare wheel

Take the following steps to stow a used collapsible spare wheel. It will otherwise not fit in the spare wheel well. Mercedes-Benz recommends that you have this work carried out at a qualified specialist workshop, e.g. an authorized Mercedes-Benz Center.

Only place the collapsible spare wheel in the vehicle when it is dry. Otherwise, moisture may get into the vehicle.

•► Unscrew the valve cap from the valve.

•► Use the back of the valve cap to unscrew the valve insert from the valve and release the air.

Fully deflating the tire can take a few minutes.

•► Screw the valve insert back into the valve.

•► Screw the valve cap back on.

•► Remove the protective sheet from the vehicle tool kit and pull it over the collapsible spare wheel.

•► Stow the collapsible spare wheel in the emergency spare wheel well under the trunk.
