Mercedes-Benz E-Class: Flat tire

Mercedes-Benz E-Class: Flat tire - Breakdown assistance - Mercedes-Benz E-Class W212 (2009-2016) Owners ManualMercedes-Benz E-Class: Flat tire

Preparing the vehicle

Your vehicle may be equipped with:

 - TIREFIT kit
 - a "Minispare" emergency spare wheel
 - a collapsible spare wheel
 - MOExtended tires (tires with run-flat properties)

Vehicle preparation is not necessary on vehicles with MOExtended tires.

Vehicles equipped with MOExtended tires are not equipped with a TIREFIT kit at the factory. It is therefore recommended that you additionally equip your vehicle with a TIREFIT kit if you mount tires that do not feature run-flat properties, e.g. winter tires.

A TIREFIT kit can be obtained from an authorized Mercedes-Benz Center.

•► Vehicles with AIRMATIC: make sure that "normal" level is selected

Stop the vehicle as far away as possible from traffic on solid, non-slippery and level ground.

•► Switch on the hazard warning lamps.

•► Firmly depress the parking brake.

•► Bring the front wheels into the straightahead position.

•► Move the selector lever/DIRECT SELECT lever to P.

•► Switch off the engine.

•► Vehicles without KEYLESS-GO: remove the SmartKey from the ignition lock.

•► Vehicles with KEYLESS-GO: open the driver's door.

The on-board electronics have status 0, which is the same as the SmartKey having been removed.

•► Vehicles with KEYLESS-GO: remove the Start/Stop button from the ignition lock

•► All occupants must get out of the vehicle.

Make sure that they are not endangered as they do so.

•► Make sure that no one is near the danger area while a wheel is being changed.

Anyone who is not directly assisting in the wheel change should, for example, stand behind the barrier.

•► Get out of the vehicle. Pay attention to traffic conditions when doing so.

•► Close the driver's door.

TIREFIT kit

Using the TIREFIT kit

You can use the TIREFIT kit to seal small punctures, particularly those in the tire tread.

You can use TIREFIT at outside temperatures down to -4 °F (-20 °C).

WARNING
TIREFIT is a limited repair device. TIREFIT cannot be used for cuts or punctures larger than approximately 0.16 in (4 mm) and tire damage caused by driving with extremely low tire inflation pressure, or on a flat tire, or a damaged wheel.

Do not drive the vehicle under such circumstances.

Contact the nearest authorized Mercedes- Benz Center for assistance or call Roadside Assistance.

•► Do not remove any foreign objects which have penetrated the tire, e.g. screws or nails.

•► Remove the tire sealant bottle, the accompanying "max. 80 km/h" sticker and the tire inflation compressor from the stowage well underneath the trunk floor/ trunk floor

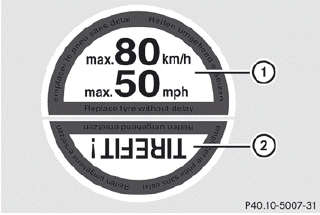

•► Affix part 1 of the sticker within the

•► Affix part 1 of the sticker within the driver's field of vision.

•► Affix part 2 of the sticker near the valve on the wheel with the defective tire.

WARNING
Take care not to allow the contents of TIREFIT to come in contact with hair, eyes or clothing.

TIREFIT is harmful if inhaled, swallowed or absorbed through the skin - causes skin, eye and respiratory irritation.

Any contact with eyes or skin should be flushed immediately with plenty of water.

If clothing comes in contact with TIREFIT, change clothing as soon as possible.

In case of allergic reaction or rash, consult a physician immediately.

WARNING
Keep TIREFIT away from children. If swallowed, rinse mouth immediately with plenty of water and drink plenty of water.

Do not induce vomiting.

Consult a doctor immediately.

Keep away from open flame or heat source.

If TIREFIT leaks out, allow it to dry. It can then be removed like a layer of film.

If you get TIREFIT on your clothing, have it cleaned as soon as possible with perchloroethylene.

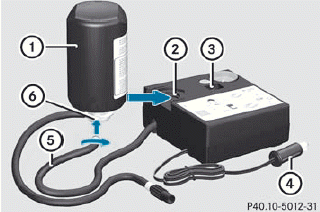

•► Pull connector 4 with the cable and hose

•► Pull connector 4 with the cable and hose 5 out of the housing.

•► Screw hose 5 onto flange 6 of tire sealant bottle 1.

•► Insert tire sealant bottle 1 upside down into opening 2 on the tire inflation compressor.

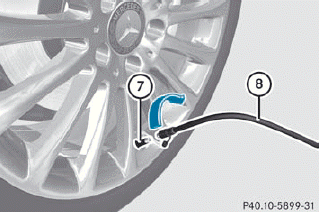

•► Remove the cap from valve 7 on the

•► Remove the cap from valve 7 on the defective tire.

•► Screw filler hose 8 onto valve 7.

•► Insert plug 4 into the cigarette lighter socket or into a 12 V socket in your vehicle

•► Turn the SmartKey to position 1 in the ignition lock.

•► Press on/off switch 3 on the tire inflation compressor to I.

The tire inflation compressor is switched on. The tire is inflated.

First, TIREFIT is pumped into the tire. The pressure can briefly rise to approximately 500 kPa (5 bar/73 psi).

Do not switch off the tire inflation compressor during this phase.

•► Allow the tire inflation compressor to run for five minutes. The tire should then have attained a pressure of at least 180 kPa (1.8 bar/26 psi).

Do not operate the tire inflation compressor for longer than eight minutes at a time without a break. It may otherwise overheat.

The tire inflation compressor can be operated again once it has cooled down.

If a pressure of 180 kPa (1.8 bar/26 psi) has been achieved after five minutes

If a pressure of 180 kPa (1.8 bar/26 psi) has not been achieved after five minutes

Tire pressure of at least 180 kPa (1.8 bar/26 psi) is not reached

If, after five minutes, a pressure of 180 kPa (1.8 bar/26 psi) has not been achieved:

•► Press the on/off switch on the tire inflation compressor to 0.

The tire inflation compressor is switched off.

•► Unscrew the filler hose from the valve of the faulty tire.

•► Very slowly drive forwards or reverse approximately 30 ft (10 m).

•► Pump up the tire again.

WARNING
If after five minutes a pressure of 180 kPa (1.8 bar/26 psi) cannot be achieved, the tire is too badly damaged to be repaired reliably using TIREFIT.

In this case TIREFIT cannot seal the tire properly.

Do not drive any further.

Contact the nearest authorized Mercedes- Benz Center for assistance or call Roadside Assistance.

Tire pressure of 180 kPa (1.8 bar/ 26 psi) is reached

•► Press the on/off switch on the tire inflation compressor to 0.

The tire inflation compressor is switched off.

•► Unscrew the filler hose from the valve of the faulty tire.

After use, excess TIREFIT may run out of the filler hose. This could cause stains.

Therefore, place the filler hose in the plastic bag which contained the TIREFIT kit.

•► Stow the tire sealant bottle and the tire inflation compressor.

•► Pull away immediately.

WARNING
Do not exceed a vehicle speed of 50 mph (80 km/h). A TIREFIT repair is not designed to operate at higher speeds.

The sticker must be attached on the instrument cluster where it will be easily seen by the driver.

Vehicle handling characteristics of a TIREFIT repaired tire may change. Adapt your driving accordingly.

•► Stop after driving for approximately ten minutes and check the tire pressure with the tire inflation compressor.

WARNING
If tire inflation pressure has fallen below 130 kPa (1.3 bar/26 psi) do not continue to drive the vehicle.

Park your vehicle safely away from the roadway and contact the nearest authorized Mercedes-Benz Center or Roadside Assistance.

Have the damaged tire replaced.

•► Correct the tire pressure if it is at least 130 kPa (1.3 bar/20 psi) (for the required values, see the Tire and Loading Information placard on the driver's side B-pillar or the tire pressure table inside the fuel filler flap).

•► To increase the tire pressure: switch on the tire inflation compressor.

•► To reduce the tire pressure: press

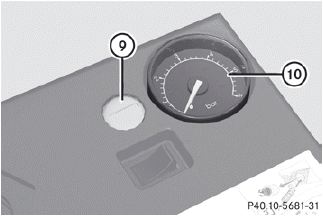

► To reduce the tire pressure: press pressure release button 9 next to pressure gauge 10.

•► Stow the tire sealant bottle and the tire inflation compressor.

•► Drive to the nearest workshop and have the tire changed there.

•► Have the tire sealant bottle replaced as soon as possible at a qualified specialist workshop, e.g. at an authorized Mercedes- Benz Center.

Environmental note
Have the used tire sealant bottle disposed of professionally, e.g. at an authorized Mercedes-Benz Center.

•► Have the tire sealant bottle replaced every four years at a qualified specialist workshop, e.g. an authorized Mercedes- Benz Center.

Changing a wheel and mounting the spare wheel

Preparing the vehicle

WARNING
The wheel and tire size of the emergency spare wheel/spare wheel may differ to that of the damaged wheel. When using an emergency spare wheel/spare wheel the handling characteristics of the vehicle may change.

Adapt your style of driving accordingly.

Never operate the vehicle with more than one emergency spare wheel/spare wheel that differs in size.

Only use an emergency spare wheel/spare wheel of a differing size briefly and do not switch off ESP®.

When using an emergency spare wheel, you must not exceed the maximum speed of 50 mph (80 km/h).

WARNING
Have the emergency spare wheel/spare wheel replaced with a new wheel as soon as possible at a qualified specialist workshop which has the necessary specialist knowledge and tools to carry out the work required.

Mercedes-Benz recommends that you use an authorized Mercedes-Benz Center for this purpose. In particular, work relevant to safety or on safety-related systems must be carried out at a qualified specialist workshop.

Vehicles without a spare wheel/ emergency spare wheel are not equipped with a tire-change tool kit at the factory. For more information on which tools are required to perform a wheel change on your vehicle, e.g. wheel chock, lug wrench or alignment bolt, consult an authorized Mercedes-Benz Center.

•► Prepare the vehicle as described

•► Remove the following items (depending on the vehicle's equipment) from the stowage well under the trunk/trunk floor:

 - the emergency spare wheel
 - the lug wrench
 - the folding wheel chock
 - the jack
 - the alignment bolt
 - the tire inflation compressor

•► Secure the vehicle to prevent it from rolling away.

Securing the vehicle to prevent it from rolling awa

WARNING
Only jack up the vehicle on level ground or on slight inclines/declines. The vehicle could otherwise fall off the jack and injure you or others.

If your vehicle is equipped with a wheel chock, it can be found in the vehicle tool kit.

The folding wheel chock is an additional securing measure to prevent the vehicle from rolling away, for example when changing a wheel.

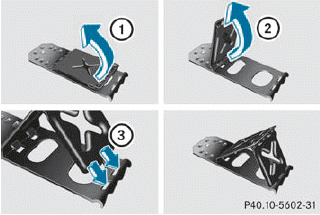

•► Fold both plates upwards 1.

•► Fold both plates upwards 1.

•► Fold out lower plate 2.

•► Guide the lugs on the lower plate fully into the openings in base plate 3.

Securing the vehicle on level ground (example:

Securing the vehicle on level ground (example:

Sedan)

•► On level ground: place chocks or other suitable items under the front and rear of the wheel that is diagonally opposite the wheel you wish to change.

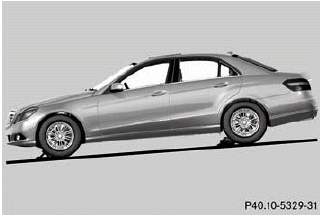

Securing the vehicle on slight downhill gradients

Securing the vehicle on slight downhill gradients (example: Sedan)

•► On downhill gradients: place chocks or other suitable items in front of the wheels of the front and rear axle.

Raising the vehicle

WARNING
When jacking up the vehicle, only use the jack which has been specifically approved by Mercedes-Benz for your vehicle.

The jack is designed exclusively for jacking up the vehicle at the jacking points built into both sides of the vehicle. The jack saddle must be placed centrally under the jacking point. The jack must always be vertical when in use, especially on inclines or declines.

The jack is intended only for lifting the vehicle briefly for wheel changes. It is not suited for performing maintenance work under the vehicle. To help avoid personal injury, use the jack only to lift the vehicle during a wheel change.

Never get beneath the vehicle while it is supported by the jack. Keep hands and feet away from the area under the lifted vehicle.

Always lower the vehicle onto sufficient capacity jackstands before working under the vehicle.

Always firmly engage the parking brake and block the wheels with wheel chocks or other sizable objects before raising the vehicle with the jack. Do not disengage the parking brake while the vehicle is raised.

Make sure that the ground on which the vehicle is standing and where you place the jack is solid, level and not slippery. If necessary, use a large underlay. On slippery surfaces, such as tiled floors, you should use a non-slip underlay, for example a rubber mat.

Do not use wooden blocks or similar objects as a jack underlay. Otherwise, the jack may not be able to achieve its load-bearing capacity if it is not at its full height.

Never start the engine when the vehicle is raised.

Also observe the notes on the jack.

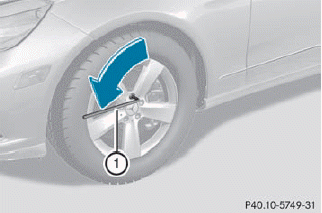

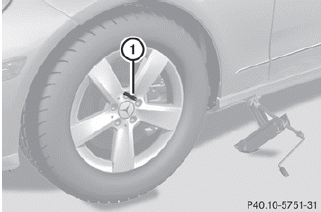

•► Using lug wrench 1, loosen the bolts on

•► Using lug wrench 1, loosen the bolts on the wheel you wish to change by about one full turn. Do not unscrew the bolts completely.

The jacking points for the jack are located behind the wheel housings of the front wheels and in front of the wheel housings of the rear wheels (arrows).

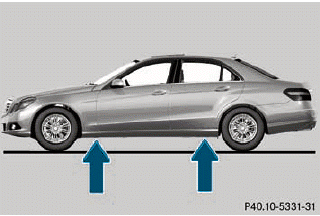

Jacking points for the jack (example: Sedan)

Jacking points for the jack (example: Sedan)

AMG vehicles and vehicles with AMG equipment: to protect the vehicle body, the vehicle has covers next to the jacking points on the outer sills.

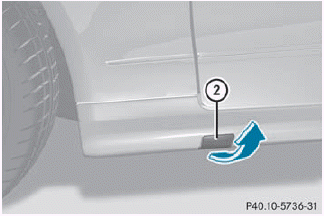

Cover, front (example: vehicles with AMG Sports

Cover, front (example: vehicles with AMG Sports package)

•► AMG vehicles and vehicles with AMG equipment: fold cover 2 upwards.

WARNING
The jack is designed exclusively for jacking up the vehicle at the jacking points. The jack saddle must be placed centrally under the jacking point. If you do not position the jack correctly in the jacking point, the vehicle can fall off the jack and seriously or fatally injure you or others.

The jack is designed exclusively for jacking up the vehicle at the jacking points.

Otherwise, your vehicle could be damaged

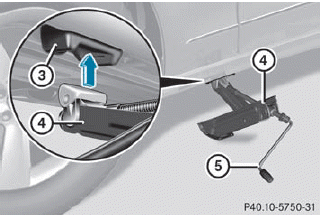

•► Position jack 4 at jacking point 3.

•► Position jack 4 at jacking point 3.

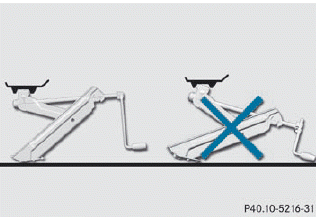

•► Make sure that the base of the jack is

•► Make sure that the base of the jack is positioned directly under the jacking point.

•► Turn crank 5 clockwise until jack 4 sits completely on jacking point 3 and the base of the jack lies evenly on the ground.

•► Turn crank 5 until the tire is raised a maximum of 1.2 inches (3 cm) off the ground.

Removing a wheel

AMG vehicles: during removal and repositioning of the wheel, the wheel rim can strike the ceramic-brake disc and damage it. Therefore, take precautions and get a second person to assist you.

Alternatively, you can use a second alignment bolt.

•► Unscrew the uppermost wheel bolt

•► Unscrew the uppermost wheel bolt completely.

•► Screw alignment bolt 1 into the thread instead of the wheel bolt.

•► Unscrew the remaining wheel bolts fully.

Do not place wheel bolts in sand or on a dirty surface. The bolt and wheel hub threads could otherwise be damaged when you screw them in.

•► Remove the wheel.

Mounting a new wheel

WARNING
Always replace wheel bolts that are damaged or rusted.

Never apply oil or grease to wheel bolts.

Damaged wheel hub threads should be repaired immediately. Do not continue to drive under these circumstances! Contact an authorized Mercedes-Benz Center or call Roadside Assistance.

Incorrect wheel bolts or improperly tightened wheel bolts can cause the wheel to come off.

This could cause an accident. Make sure to use the correct wheel bolts.

WARNING
Only use genuine Mercedes-Benz wheel bolts.

Other wheel bolts may come loose. Do not tighten the wheel bolts when the vehicle is raised. Otherwise, the vehicle could fall off the jack.

WARNING
Make sure to use the original length wheel bolts when remounting the original wheel after it has been repaired.

•► Clean the wheel and wheel hub contact surfaces.

To prevent damage to the paintwork, hold the wheel securely against the wheel hub while screwing in the first wheel bolt.

AMG vehicles: during removal and repositioning of the wheel, the wheel rim can strike the ceramic-brake disc and damage it. Therefore, take precautions and get a second person to assist you.

Alternatively, you can use a second alignment bolt.

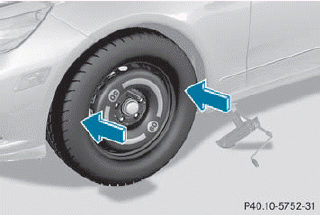

•► Slide the emergency spare wheel onto the

•► Slide the emergency spare wheel onto the alignment bolt and push it on.

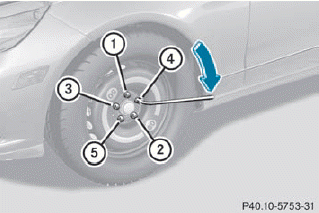

•► Tighten the wheel bolts until they are finger-tight.

•► Unscrew the alignment bolt.

•► Tighten the last wheel bolt until it is fingertigh

Inflating the collapsible spare wheel

WARNING
Inflate the collapsible spare wheel only after the wheel is properly attached.

Inflate the collapsible spare wheel using the tire inflation compressor before lowering the vehicle.

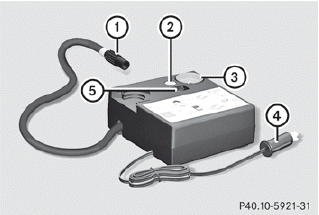

•► Pull connector 4 and the air hose out of

•► Pull connector 4 and the air hose out of the housing.

•► Remove the cap from the valve on the collapsible spare wheel.

•► Screw union nut 1 on the air hose onto the valve.

•► Make sure on/off switch 5 of the tire inflation compressor is set to 0.

•► Insert plug 4 into the socket of the cigarette lighter or into a 12 V power socket  in your vehicle.

•► Make sure that the SmartKey is in position 1 in the ignition lock.

•► Press on/off switch 5 on the tire inflation compressor to I.

The tire inflation compressor is switched on. The tire is inflated. Gauge 3 shows the tire pressure.

Do not operate the tire inflation compressor for longer than eight minutes at a time without a break. It may otherwise overheat.

The tire inflation compressor can be operated again once it has cooled down.

Inflate the tire to the specified tire pressure.

The specified tire pressure is printed on the yellow label of the emergency spare wheel.

•► When the specified tire pressure has been reached, press on/off switch 5 on the electric air pump to 0.

The tire inflation compressor is switched off.

•► Turn the SmartKey to position 0 in the ignition lock.

•► If the tire pressure is higher than the specified pressure, press pressure release button 2 until the correct tire pressure has been reached.

•► Unscrew union nut 1 on the air hose from the valve.

•► Screw the valve cap onto the collapsible spare wheel valve again.

•► Stow plug 4 and the air hose in the lower section of the compressor housing.

•► Stow the tire inflation compressor in the designated place in the vehicle.

Lowering the vehicle

WARNING
Vehicles with a spare wheel with a collapsible spare wheel only: do not inflate the collapsible spare wheel until it has been mounted.

Inflate the collapsible spare wheel using the tire inflation compressor before lowering the vehicle.

•► Turn the crank of the jack counterclockwise until the vehicle is once again standing firmly on the ground.

•► Place the jack to one side.

•► Tighten the wheel bolts evenly in a

•► Tighten the wheel bolts evenly in a crosswise pattern in the sequence indicated (1 to 5). The tightening torque must be 96 lb-ft (130 Nm).

WARNING
Have the tightening torque checked immediately after a wheel is changed. The wheels could come loose if they are not tightened to a torque of 96 lb/ft (130 Nm).

Turn the jack back to its initial position and store it together with the rest of the tirechange tool kit in the trunk/cargo compartment.

•► AMG vehicles and vehicles with AMG equipment: insert the cover into the outer sill.

Vehicles with an emergency spare wheel:

•► Transport the defective wheel in the trunk/ cargo compartment.
or
•► Depending on the size of the wheel, you may also be able to secure the defective wheel in the spare wheel well. In this case, you will have to remove the stowage well casing from the spare wheel well and stow it securely in the trunk/cargo compartment.

For further information on stowing the collapsible spare wheel.

When you are driving with the collapsible spare wheel mounted, the tire pressure loss warning system or the tire pressure monitoring system cannot function reliably. Only restart the tire pressure loss warning system/tire pressure monitoring system when the defective wheel has been replaced with a new wheel.

Vehicles with tire pressure monitoring system: all mounted wheels must be equipped with functioning sensors and the defective wheel should no longer be in the vehicle.

MOExtended tires (tires with run-flat properties)

MOExtended tires (tires with run-flat properties) allow you to continue driving your vehicle even if one or more tires are entirely deflated.

MOExtended tires may only be used in conjunction with the activated tire pressure loss warning system or with the activated tire pressure monitoring system.

The maximum permissible distance which can be driven in run-flat mode depends on the load in the vehicle. You can drive 50 miles (80 km) if the vehicle is partially laden and 18 miles (30 km) if it is fully laden.

The maximum permissible distance which can be driven in run-flat mode is counted from the moment the tire pressure loss warning appears in the multifunction display.

You must not exceed a maximum speed of 50 mph (80 km/h).

WARNING
The handling characteristics of your vehicle deteriorate in run-flat mode, for example:

 - when cornering
 - when braking
 - when accelerating rapidly
Adapt your driving style accordingly and avoid sudden changes in direction and sudden acceleration, as well as driving over obstacles (i.e. curbs, potholes), and driving off-road.

This is particularly the case when the vehicle is heavily laden.

The maximum permissible distance that can be driven in run-flat mode depends to a large extent on the loads placed on the vehicle. It can be shorter due to high speeds, a heavy load, sudden changes in direction, the road surface condition, outside temperature, etc., or further if you drive carefully and conservatively.

Do not continue to drive in run-flat mode if:

 - you hear banging noises.
 - the vehicle starts to shake.
 - you see smoke and smell rubber.
 - ESP® is intervening constantly.

Rthere are tears in the sidewalls of the tire.

After driving in run-flat mode, you must have the wheel(s) checked for damage at a qualified specialist workshop which has the necessary specialist knowledge and tools to carry out the work required. The defective tire must be replaced in every case.

Mercedes-Benz recommends that you use an authorized Mercedes-Benz Center for this purpose. In particular, work relevant to safety or on safety-related systems must be carried out at a qualified specialist workshop.

When replacing one or all tires, make sure that you only use tires marked MOExtended and of the specified size for the vehicle.

Vehicles equipped with MOExtended tires are not equipped with a TIREFIT kit at the factory. It is therefore recommended that you additionally equip your vehicle with a TIREFIT kit if you mount tires that do not feature run-flat properties, e.g. winter tires.

A TIREFIT kit can be obtained from an authorized Mercedes-Benz Center.
