• Power windows
• Integrated rear sun shade

Power windows

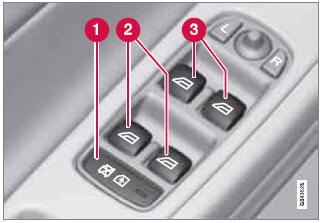

Driver's door control panel

1 - Switch for disengaging rear door power window buttons

2 - Rear door window controls

3 - Front door window controls.

WARNING

• Always remove the ignition key when the vehicle is unattended.
• Never leave children unattended in the vehicle.
• Make sure that the windows are completely unobstructed before they are operated.

Operating

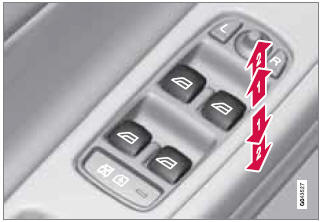

Operating the power windows

1 - Manual up/down

2 - Auto up/down.

All power windows can be operated using the control panel in the driver's door. The control panels in the other doors only operate the window in the respective doors.

For the power windows to function, the ignition must be in at least mode I. When the vehicle has been running, the power windows can be operated for several minutes after the remote key has been removed from the ignition slot, or until a door has been opened.

NOTE

• Movement of the windows will stop if they are obstructed in any way.
• To reduce buffeting wind noise if the rear windows are opened, also open the front windows slightly.

Manual up/down

Move one of the controls up/down slightly.

> The power windows move up/down as long as the control is held in position.

Auto up/down

Move one of the controls up/down as far as possible and release it.

> The window will open or close completely.

Resetting

If the battery has been disconnected, the auto open function must be reset so that it will work properly.

1. Gently raise the front section of the button to close the window and hold it for one second.

2. Release the button briefly.

3. Raise the front section of the button again for one second.

Integrated rear sun shade

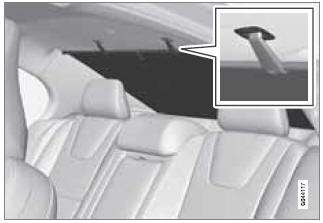

Integrated sun shade

Pull up the sun shade and attach its hooks to the ceiling clips.

> The sun shade's spring-loading will pull it taut.

When not in use, release the hooks and hold the sun shade while it retracts.
