Volvo S60: Mirrors

Volvo S60: Mirrors

• Power door mirrors
• Rear window and door mirror defrosters
• Interior rearview mirror

Power door mirrors

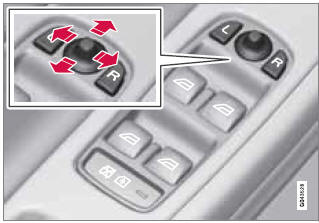

Door mirror controls

Adjusting

1. Press the L button for the left door mirror or the R button for the right door mirror. The light in the button comes on.

2. Adjust the position with the joystick in the center.

3. Press the L or R button again. The light should no longer be on.

WARNING

Objects seen in the mirrors may appear further away than they actually are.

Retractable power door mirrors

The mirrors can be retracted for parking/driving in narrow spaces:

1. Press down the L and R buttons at the same time.

2. Release them after approximately one second. The mirrors automatically stop in the fully retracted position.

Fold out the mirrors by pressing down the L and R buttons at the same time. The mirrors automatically stop in the fully extended position.

Storing the position

The mirror positions are stored in the key memory when the vehicle has been locked with the remote key. When the vehicle is unlocked with the same remote control the mirrors and the driver's seat adopt the stored positions when the driver's door is opened.

The function can be activated/deactivated in MY CAR under Settings Car settings Car key memory Position of door mirrors and driver's seat in key. See page 133 for a description of the menu system.

Tilting the door mirrors when parking*

The door mirrors can be tilted down to help give the driver a better view along the sides of the vehicle, for example when parallel parking.

To activate this function, select reverse gear and press the L or R mirror control button to tilt the mirror down.

The function can be activated/deactivated in MY CAR under Settings Car settings Side mirror settings Tilt left mirror or Tilt right mirror. See page 133 for a description of the menu system.

The door mirror will reset to its normal position:

• after 10 seconds when reverse is disengaged and the car remains stopped.
• immediately when reverse is disengaged and the vehicle's forward speed exceeds approximately 6 mph (10 km/h).
• immediately if you press the corresponding L or R button again.
• when the engine is turned off.
• when the side mirrors are folded in.

NOTE

Only one mirror can be tilted down at a time.

Automatically tilting the door mirrors when parking

The door mirrors can tilt down automatically to help give the driver a better view along the sides of the vehicle, for example when parallel parking. When the transmission is no longer in reverse, the mirrors will automatically return to their original position.

This function can be activated/deactivated in MY CAR under Settings - Car settings - Side mirror settings - In reverse gear tilt left mirror or In reverse gear tilt right mirror. See page 133 for information about the MY CAR menu system.

Automatic retraction when locking

When the vehicle is locked/unlocked with the remote key the door mirrors are automatically retracted/extended.

The function can be activated/deactivated in MY CAR under Settings - Car settings - Side mirror settings - Retract side mirrors when locking. See page 133 for a description of the menu system.

Resetting to neutral

Mirrors that have been moved out of position by an external force must be electrically reset to the neutral position for electric retracting/ extending to work.

• Retract the mirrors with the L and R buttons.
• Fold them out again with the L and R buttons.

The mirrors are now reset in neutral position.

Home safe and approach lighting

The light on the door mirrors comes on when approach lighting or home safe lighting is selected, see page 100.

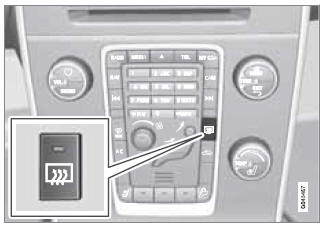

Rear window and door mirror defrosters

Use the defroster to quickly remove fog and ice from the rear window and the door mirrors.

Press the button once to start simultaneous rear window and door mirror defrosting. The light in the button indicates that the function is active. Switch the function off when then windows have cleared to help avoid battery drain.

The rear window is defogged/de-iced automatically if the vehicle is started in an outside temperature lower than 48 °F (9 °C). Autodefrosting can be selected in MY CAR under Settings - Climate settings - Automatic rear defroster. See page 133 for a description of the menu system.

Interior rearview mirror

Auto-dim function

An integrated sensor reacts to headlights from following traffic and automatically reduces glare in the mirror.
