Mercedes-Benz E-Class: Trunk/cargo compartment

WARNING
Monitor the closing procedure carefully to make sure no one is in danger of being injured. To prevent possible personal injury, always keep hands and fingers away from the trunk opening when closing the trunk lid. Be especially careful when small children are around. To stop the closing procedure, do one of the following:

- Press button on the SmartKey.
- Press the remote trunk opening/closing switch (on the driver's door).
- Press the trunk closing switch.
- Press the KEYLESS-GO locking/closing switch.

RPull the trunk lid handle.

Even with the SmartKey removed from the starter switch or the SmartKey with KEYLESSGO removed from the vehicle, the remote trunk opening/closing switch can be operated. Therefore, do not leave children unattended in the vehicle, or with access to an unlocked vehicle. A child's unsupervised access to a vehicle could result in an accident and/or serious personal injury.

Sedan: you can close the trunk lid automatically using the closing button4 or the locking button5.

Wagon: you can close the tailgate automatically using either the closing button or the locking button6.

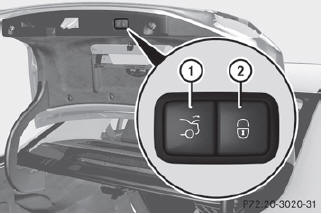

Closing button and locking button (example:

Sedan)

•► To close: press closing button 1 in the trunk lid/tailgate.

•► To close and lock simultaneously: Press closing button 2 in the trunk lid/ tailgate.

if you leave a KEYLESS-GO key in the trunk/cargo compartment, the trunk lid/ tailgate will not lock.

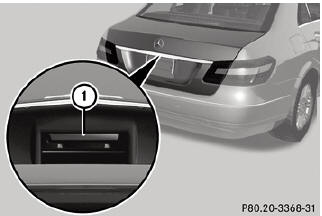

Opening/closing automatically from inside

WARNING
Keep an eye on the area at the rear end of the vehicle when operating the trunk lid/tailgate with the remote operating switch on the door.

If unsupervised children have access to a vehicle, it could lead to an accident and/or serious injury.

WARNING
Ensure that the trunk lid/tailgate is closed when the engine is running and the vehicle is in motion. Among other dangers, deadly carbon monoxide (CO) may enter the vehicle interior and cause unconsciousness and even death.

You can open and close the trunk lid/tailgate from the driver's seat when the vehicle is stationary and unlocked.

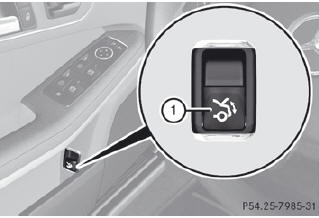

•► To open: pull remote operating switch for trunk lid/tailgate 1 until the trunk lid/ tailgate opens.

•► To close (Sedan): press remote operating switch for trunk lid 1 until the trunk lid is closed.

•► To close (Wagon): turn the SmartKey to position 1 or 2 in the ignition lock.

•► Press remote operating switch for tailgate 1 until the tailgate is closed.

Limiting the opening angle of the tailgate (Wagon)

Important safety notes

You can limit the opening angle of the tailgate. This is possible in the top half of its opening range, up to approximately 8 in (20 cm) before the stop.

Make sure there is sufficient clearance to open the tailgate fully when setting the opening angle. The tailgate could otherwise be damaged. Ideally, set the opening angle outside.

Activating

•► To open the tailgate: pull the handle on the tailgate.

•► To stop the opening procedure at the desired position: press the closing button (Y page 86) in the tailgate or pull the handle on the outside of the tailgate again.

•► To store the position: press and hold the closing button in the tailgate until you hear a short tone.

The opening angle limiter is activated. The tailgate will now stop in the stored position when opening.

Deactivating

•► Press and hold the closing button in the tailgate until you hear two short tones.

Locking the trunk separately (Sedan)

You can lock the trunk separately. If you then unlock the vehicle centrally, the trunk remains locked and cannot be opened.

•► Close the trunk lid.
•► Take the mechanical key out of the SmartKey

•► Insert the mechanical key into the trunk lid lock as far as the stop.

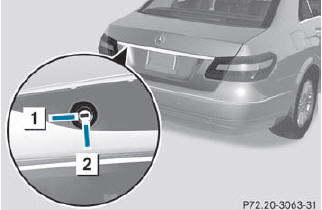

•► Turn the mechanical key clockwise from position 1 to position 2.

•► Remove the mechanical key.

•► Insert the mechanical key into the SmartKey.

Unlocking the trunk (Sedan)

The trunk lid swings upwards when opened. Therefore, make sure that there is sufficient clearance above the trunk lid.

If the trunk cannot be unlocked with the SmartKey or KEYLESS-GO, use the mechanical key.

If you use the mechanical key to unlock and open the trunk lid, the anti-theft alarm system will be triggered.

•► Take the mechanical key out of the SmartKey.
•► Insert the mechanical key into the trunk lid lock as far as the stop.

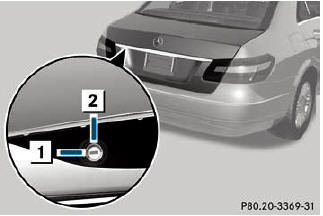

•► Turn the mechanical key counter-clockwise from position 1 as far as it will go to position 2.

The trunk is unlocked.

•► Turn the mechanical key back to position 1 and remove it.

•► Insert the mechanical key into the SmartKey.

Trunk emergency release (Sedan)

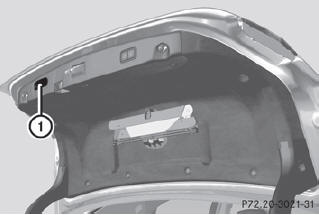

You can open the trunk lid from inside the vehicle with the emergency release button.

Briefly press emergency release button 1.

The trunk lid unlocks and opens.

The trunk lid can be unlocked and opened with the trunk lid emergency release when the vehicle is stationary or while driving.

Trunk lid emergency release light:

Remergency release button 1 flashes for 30 minutes after the trunk lid is opened.

Remergency release button 1 flashes for 60 minutes after the trunk lid is closed.

The trunk lid emergency release does not open the trunk lid if the battery is disconnected or discharged.

Tailgate emergency release (Wagon)

If the tailgate can no longer be opened from outside the vehicle, use the emergency release on inside of the tailgate.

On vehicles with a folding bench seat you can open the tailgate from inside the vehicle using the handle.

•► Take the mechanical key out of the SmartKey

To open the tailgate completely, a minimum clearance of 6.36 ft (1.94 m) above the ground is necessary.

The tailgate swings upwards and to the rear when opened. Therefore, make sure that there is sufficient clearance above and behind the tailgate.

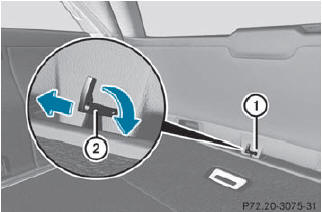

•► Insert mechanical key 2 into opening in trim 1.

•► Turn mechanical key 2 90° clockwise.

•► Push mechanical key 2 in the direction of the arrow and open the tailgate.
