Nissan Maxima: Speedometer and odometer
Speedometer and
odometer
Speedometer
The speedometer indicates the vehicle speed.

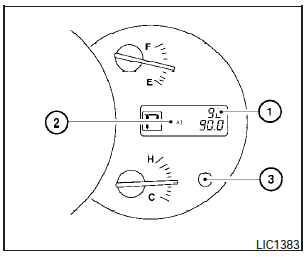

Odometer/Twin
trip odometer
The odometer/twin trip odometer is displayed when the ignition switch is placed in the ON position.
The odometer records the total distance the vehicle has been driven.
The twin trip odometer records the distance of individual trips.
Changing the display
Push the change button (3)- to change the display as follows:
Resetting the trip odometer:
Push the change button for more than 1 second to reset the currently displayed trip odometer to zero.
Elapsed time, driving distance and average speed information is also available. Refer to Control panel buttons in the Monitor, climate, audio, phone and voice recognition systems section in this manual.
Meters and gauges
Meters and gauges
1. Tachometer.
2. Speedometer.
3. Warning/indicator lights.
4. Fuel gauge.
5. Odometer/twin trip odometer.
6. Trip odometer change button.
7. Engine coolant temperatur ...
Tachometer
Tachometer
The tachometer indicates engine speed in revolutions per minute (rpm). Do not
rev the engine into the red zones.
CAUTION:
When engine speed approaches the red zone, shift to a ...
