Mercedes-Benz E-Class: Sliding sunroof
- Important safety notes
- Operating the sliding sunroof
- Operating the panorama roof with power tilt/sliding panel
- Operating the sunblinds for the panorama roof with power tilt/sliding panel
- Problems with the sliding sunroof
Important safety notes
Your vehicle may be equipped with a sliding sunroof or a panorama roof with power tilt/ sliding panel. In the following section, the term "sliding sunroof" refers to both types of sliding sunroof.
WARNING
When opening or closing the sliding sunroof,
make sure that there is no danger of anyone
being harmed by the opening/closing
procedure.
The sliding sunroof is equipped with automatic operation and the anti-entrapment feature. If the movement of the sliding sunroof is blocked during the closing procedure, the sliding sunroof will stop and open slightly.
The sliding sunroof operates differently when the sliding sunroof switch is pressed and held.
See the "Problems with the sliding sunroof" section for more details.
The opening/closing procedure of the sliding sunroof can be immediately halted by releasing the sliding sunroof switch or, if the sliding sunroof switch was moved past the resistance point and released, by moving the sliding sunroof switch in any direction.
WARNING
The sliding sunroof is made out of glass. In the
event of an accident, the glass may shatter.
This may result in an opening in the roof.
In a vehicle rollover, occupants not wearing their seat belts or not wearing them properly may be thrown out of the opening. Such an opening also presents a potential for injury for occupants wearing their seat belts properly, as entire body parts or portions of them may protrude from the passenger compartment.
Only open the sliding sunroof if it is free of snow and ice. Otherwise, malfunctions may occur.
Do not allow anything to protrude from the sliding sunroof. Otherwise, the seals could be damaged.
The weather can change abruptly. It could start to rain or snow. Make sure that the sliding sunroof is closed when you leave the vehicle. The vehicle electronics can be damaged if water enters the vehicle interior.
Resonance noises can occur in addition to the usual airflow noises when the sliding sunroof is open. They are caused by minor pressure fluctuations in the vehicle interior.
Change the position of the sliding sunroof or open a side window slightly to reduce or eliminate these noises.
Operating the sliding sunroof
Opening and closing
You can continue to operate the sliding sunroof after switching off the engine or removing the SmartKey from the ignition lock. This function is available for up to five minutes or until the driver's or frontpassenger door is opened.

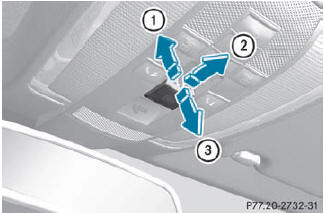

Overhead control panel
1. To raise
2. To open
3. To close/lower
•► Turn the SmartKey to position 1 or 2 in the
ignition lock.
•► Press or pull the
switch in the
corresponding direction.
If you press the switch beyond
the
point of resistance, an automatic opening/
closing process is started in the
corresponding direction. You can stop
automatic operation by operating the
switch again.
When opening and raising the roof, automatic operation is only available if the sliding sunroof is in the closed position.
The sun protection cover automatically opens along with the sliding sunroof. You can open or close the sun protection cover manually when the sliding sunroof is raised or closed.
Resetting
Reset the sliding sunroof if it does not move smoothly.
•► Turn the SmartKey to position 2 in the ignition lock.
•► Raise the sliding sunroof fully at the rear.
•► Keep the switch pressed for
another
second.
•► Make sure that the sliding sunroof can be fully opened and closed again.
•► If this is not the case, repeat the steps above again.
If the sliding sunroof still cannot be opened or closed fully after resetting, contact a qualified specialist workshop.
Operating the panorama roof with power tilt/sliding panel
Opening and closing

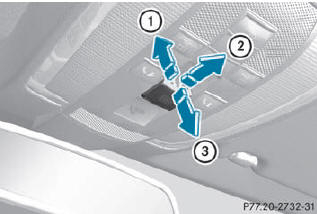

Overhead control panel
1. To raise
2. To open
3. To close/lower
The panorama roof with power tilt/sliding panel can only be operated when the roller sunblind is open.
•► Turn the SmartKey to position 1 or 2 in the ignition lock.
•► Push or pull the switch in the
corresponding direction.
If you press the switch beyond
the
point of resistance, an automatic opening/
closing process is started in the
corresponding direction. You can stop
automatic operation by operating the
switch again.
Operating the sunblinds for the panorama roof with power tilt/sliding panel
General notes
The roller sunblinds shield the vehicle interior from sunlight. The two roller sunblinds can only be opened and closed together when the panorama roof with power tilt/sliding panel is closed.
WARNING
When opening or closing the roller sunblinds,
make sure that no one can be injured.
The roller sunblinds have automatic operation and an anti-entrapment feature. If the roller sunblinds are blocked during the closing procedure, the anti-entrapment feature stops the roller sunblinds and they open again slightly.
The opening and closing of the roller sunblinds can be terminated immediately by releasing the button. In automatic operation, press the button briefly in any direction to stop the roller sunblinds.
Opening and closing

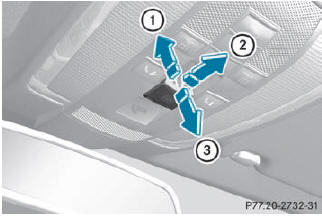

Overhead control panel
1. To open
2. To open
3. To close
•► Turn the SmartKey to position 1 or 2 in the ignition lock.
•► Press or pull the switch in the
corresponding direction.
If you press the switch beyond
the
point of resistance, an automatic opening/
closing process is started in the
corresponding direction. You can stop
automatic operation by operating the
switch again.
Resetting the panorama roof with power tilt/sliding panel and the roller sunblinds
Reset the panorama roof with power tilt/ sliding panel and the roller sunblinds if the panorama roof with power tilt/sliding panel or the roller sunblinds do not move smoothly.
•► Turn the SmartKey to position 1 or 2 in the ignition lock.
•► Pull the switch repeatedly to the
point
of resistance in the direction of arrow 3
until the panorama roof with power tilt/
sliding panel is fully closed.
•► Keep the switch pulled for an
additional second.
•► Pull the switch repeatedly to
the point
of resistance in the direction of arrow 3
until the roller sunblinds are fully closed.
•► Keep the switch pulled for an
additional second.
•► Make sure that the panorama roof with power tilt/sliding panel and the roller sunblinds can be fully opened again.
•► If this is not the case, repeat the steps above again.
If the panorama roof with power tilt/ sliding panel and the roller sunblind cannot be fully opened or closed after resetting, contact a qualified specialist workshop.
Problems with the sliding sunroof
Your vehicle may be equipped with a sliding sunroof or a panorama roof with power tilt/ sliding panel. In the following section, the term "sliding sunroof" refers to both types of sliding sunroof.
Problem: the sunroof cannot be closed and you cannot see the cause.
WARNING
You could be severely or even fatally injured
when closing the sliding sunroof with
increased closing force or if the antientrapment
feature is deactivated. Make sure
that nobody can become trapped when
closing the sliding sunroof.
If the sliding sunroof is obstructed during closing and reopens again slightly:
•► Immediately after the sliding sunroof
blocks, pull the switch in the
overhead control panel down to the point
of resistance and hold it until the sliding
sunroof is closed.
The sliding sunroof is closed with increased force.
If the sliding sunroof is obstructed again during closing and reopens again slightly:
•► Immediately after the sliding sunroof
blocks, pull the switch in the
overhead control panel down to the point
of resistance and hold it until the sliding
sunroof is closed.
The sliding sunroof is closed without the anti-entrapment feature.
WARNING
Pressing and holding the sliding sunroof
switch to close the sliding sunroof
immediately after it had been blocked two
times will cause the sliding sunroof to close
without the anti-entrapment feature for as
long as you hold the switch.
If the sliding sunroof still cannot be opened or closed as a result of a malfunction, contact a qualified specialist workshop.
