Introduction

The moonroof controls are located in the ceiling console near the rearview mirror. The moonroof can be opened vertically and horizontally. The vehicle's ignition must be in mode I or II for the moonroof to be operated.

CAUTION

• Remove ice and snow before opening the moonroof.
• Do not operate the moonroof if it is frozen closed.
• Never place heavy objects on the moonroof.

Sliding moonroof

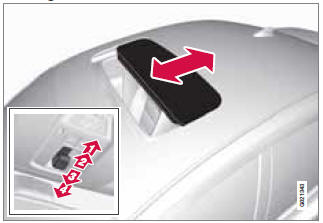

Sliding moonroof, forward/rearward

1 - Opening, automatic

2 - Opening, manual

3 - Closing, manual

4 - Closing, automatic

Automatic opening

Pull the switch as far back as possible (to the position for automatic opening) and release it to automatically fully slide open the moonroof.

Manual opening

Pull the switch back to the first stop (the position for manual opening) and hold it until the moonroof has opened to the position of your choice.

Manual closing

Push the switch forward to the first stop (the position for manual closing) and hold it until the moonroof has closed to the position of your choice, or has closed completely.

Automatic closing

Push the switch as far forward as possible (the position for automatic closing) and release it to automatically close the moonroof.

WARNING

• During manual closing, if the moonroof is obstructed, immediately open it again.
• Never open or close the moonroof if it is obstructed in any way.
• Never allow a child to operate the moonroof.
• Never leave a child alone in a vehicle.
• Never extend any object or body part though the open moonroof, even if the vehicle's ignition is completely switched off.

Tilt position

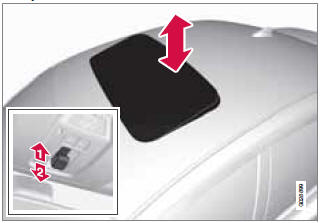

Tilt position, raised at the rear edge

1 - Open by pressing the rear edge of the control upward.

2 - Close by pulling the rear edge of the control downward and hold it until the moonroof has closed completely.

Visor

The moonroof features a sliding visor. The visor slides open automatically when the moonroof is opened, and must be closed manually.

• Wind blocker

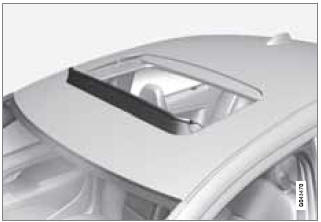

Wind blocker

The moonroof is equipped with a wind blocker that folds up when the moonroof is open.
