Playing the XM Radio (Models with navigation system)

Your vehicle is capable of receiving XM Radio anywhere in the United States and Canada, except Hawaii, Alaska, and Puerto Rico. XM is a registered trademark of Sirius XM Radio , Inc. and XMCANADA is a registered business name of Canadian Satellite Radio Inc.

XM Radio receives signals from two satellites to produce clear, highquality digital reception. It offers many channels in several categories.

Along with a large selection of different types of music, XM Radio also allows you to view channel and category selections in the audio display.

• Operating the XM Radio
• XM Radio Display Messages
• Receiving XM Radio Service

Operating the XM Radio

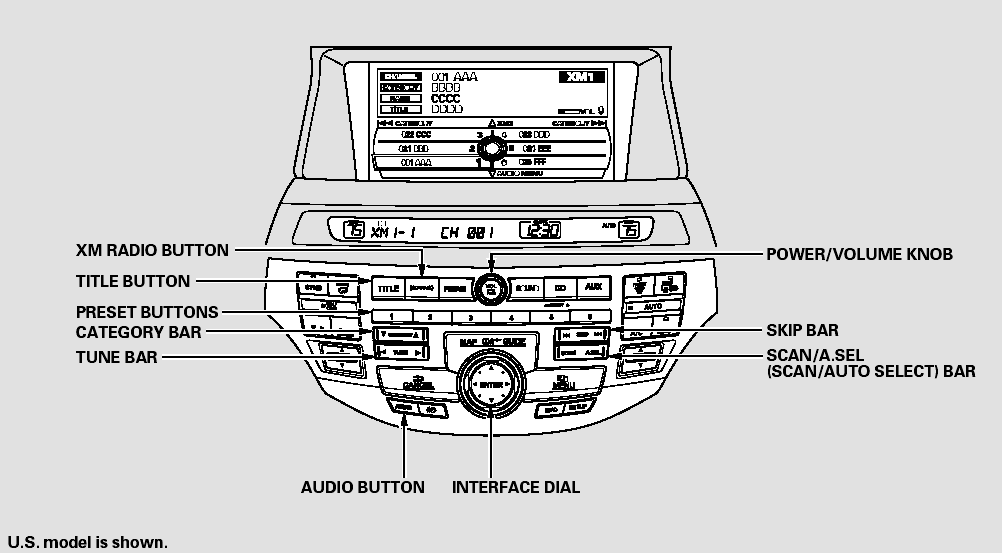

To listen to XM Radio, turn the ignition switch to the ACCESSORY (I) or ON (II) position, and press the button. The last channel you listened to will show in the audio screen and the center display. Adjust the volume by turning the power/ volume knob.

Push the AUDIO button to display XM information on the screen. You can operate the XM Radio system with the interface dial.

MODE - To switch between the category mode and channel mode, press and hold the TITLE button until the mode changes. The CATEGORY or CHANNEL mode is displayed on the screen. To switch the mode with the interface dial, push down the interface selector to select AUDIO MENU, then turn the knob to select MODE, and press ENTER on the selector repeatedly.

In the category mode, such as Jazz, Rock, Classical, etc., you can navigate through all of the channels within that category. In the channel mode, you can select all of the available channels.

Each time you press and release the TITLE button, the center display changes in the following sequence:

NAME (artist name), TITLE (music title), and CHANNEL NAME (channel name).

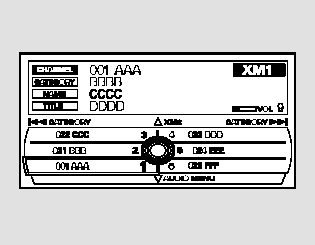

On the screen, youwill see the selected CHANNEL (number), CATEGORY, NAME (artist name), and TITLE (music title).

TUNE - Press either side of the TUNE bar to change channel selections. Press the side of the bar for higher numbered channels and the side for lower numbered channels. You can also change channels with the interface selector, push down the interface selector to select AUDIO MENU, then turn the interface knob to choose TUNE and press ENTER on the selector. Turn the interface knob to the appropriate direction. In the category mode, you can only select channels within that category.

CHANNEL LIST - Push down the interface selector to select AUDIO MENU, then turn the interface knob to select CHANNEL LIST and press ENTER on the selector. Turn the interface knob to select a channel, then press ENTER to set your selection.

 CATEGORY ( or ) - Press either side of the bar to select another category. You can also change a category by pushing the interface selector left or right.

SCAN - The scan function gives you a sampling of all channels while in the channel mode. In the category mode, only the channels within that category are scanned. To activate SCAN, press the SCAN side of the SCAN/A.SEL bar. To scan with the interface dial, scroll down, and push the interface selector to the right.

You will see SCANon the screen and center display.

The system plays each channel in numerical order for a few seconds, then selects the next channel. When you hear a channel you want to continue listening to, push the interface selector to the right again or press the SCAN side of the bar to cancel.

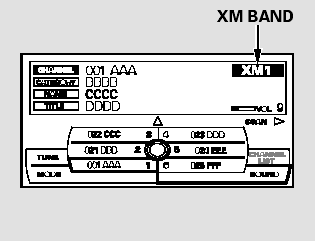

Preset - You can store up to 12 preset channels using the six preset buttons. Each button stores one channel from the XM1 band and one channel from the XM2 band.

To store a channel:

1. Press the button or scroll up by pushing the interface selector up. Either XM1 or XM2 will be shown on the display.

2. Use the tune, skip (seek), or scan function to tune to a desired channel.

In category mode, only channels within that category can be selected. In channel mode, all channels can be selected.

3. Pick the preset button you want for that channel. Press and hold the preset button until you hear a beep. You can also pick the number with the interface dial.

Select your desired number and press and hold ENTER on the interface selector.

4. Repeat steps 2 and 3 to store the first six channels.

5. Press the button or scroll up again. The other XM band will be shown. Store the next six channels using steps 2 and 3.

Once a channel is stored, press and release the proper preset button to tune to it.

XM Radio Display Messages

‘‘LOADING’’ - XM is loading the audio or program information.

‘‘OFF AIR’’ - The channel currently selected is no longer broadcasting.

‘‘UPDATING’’ - The encryption code is being updated. Wait until the encryption code is fully updated.

Channels 0 and 1 should still work normally.

‘‘NO SIGNAL’’ - The signal is currently too weak. Move the vehicle to an area away from tall buildings, and with an unobstructed view of the southern horizon.

‘‘ - - - - ’’ - The selected channel number does not exist, or is not part of your subscription, or this channel has no artist or title information at this time.

‘‘NO INFO’’ - The selected channel has no artist or title information at this time.

‘‘ANTENNA’’ - There is a problem with the XM antenna. Please consult your dealer.

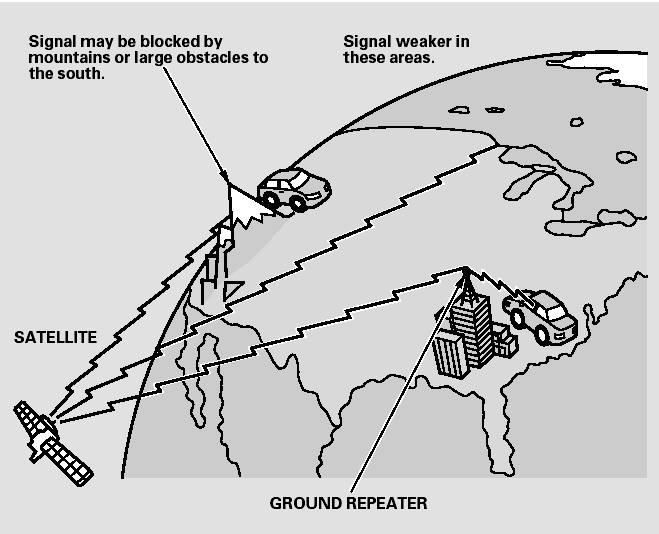

The XM satellites are in orbit over the equator; therefore, objects south of the vehicle may cause satellite reception interruptions. To help compensate for this, ground-based repeaters are placed in major metropolitan areas.

Satellite signals are more likely to be blocked by tall buildings and mountains the farther north you travel from the equator.

Depending on where you drive, you may experience reception problems.

Interference can be caused by any of these conditions:

Driving on the north side of an east/west mountain road.

Driving on the north side of a large commercial truck on an east/west road.

Driving in tunnels.

Driving on a road beside a vertical wall, steep cliff, or hill to the south of you.

Driving on the lower level of a multi-tiered road.

Driving on a single lane road alongside dense trees taller than 50 ft. (15 m) to the south of you.

There may be other geographic situations that could affect XM Radio reception.

As required by the FCC:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Receiving XM Radio Service

If your XM Radio service has expired or you purchased your vehicle from a previous owner, you can listen to a sampling of the broadcasts available on XM Radio. With the ignition switch in the ACCESSORY (I) or the ON (II) position, press the button. A variety of music types and styles will play.

If you decide to purchase XM radio service, contact XM Radio at www.xmradio.com, or at 1-800-852-9696. In Canada, contact XM CANADA at www.xmradio.ca, or at 1-877-209-0079. You will need to give them your radio I.D. number and your credit card number. To get your radio I.D. number, press the side of the TUNE bar until ‘‘0’’ appears in the display. Your I.D. will appear in the display.

After you’ve registered with XM Radio, keep your audio system in the XM Radio mode while you wait for activation. This should take about 30 minutes.

While waiting for activation, make sure your vehicle remains in an open area with good reception. Once your audio system is activated, CAT (category) or CH (channel) will appear in the center display, and you’ll be able to listen to XM Radio broadcasts. XM Radio will continue to send an activation signal to your vehicle for at least 12 hours from the activation request. If the service has not been activated after 36 hours, contact XM Radio. In Canada, contact XMCANADA .
