Subaru Legacy: Maintenance tools

Subaru Legacy: Maintenance tools

Your vehicle is equipped with the following maintenance tools.

● Jack
● Jack handle
● Screwdriver
● Towing hook (eye bolt) (if equipped) . Wheel nut wrench
● Electronic parking brake release tool

• Legacy
• Outback

Legacy

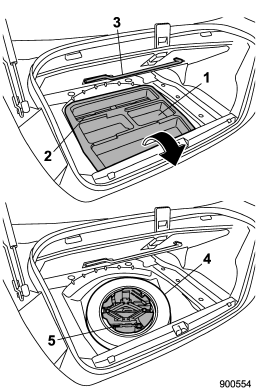

1) Under-floor storage compartment (Refer to “Under-floor storage compartment” F6-18.)
2) Electronic parking brake release tool
3) Jack handle
4) Spare tire
5) Tool bucket

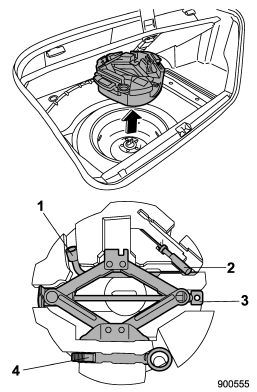

1) Wheel nut wrench
2) Screwdriver
3) Jack
4) Towing hook (eye bolt) (if equipped)

The jack handle is stored on the back of the floor cover of the trunk. The electronic parking brake release tool is stored under the floor of the trunk. The other tools are stored in the tool bucket that is located in the recess of the spare tire wheel.

For the method to use the jack, refer to “Flat tires” F9-6.

For the method to use the electronic parking brake release tool, refer to “Electronic parking brake – if the electronic parking brake cannot be released” F9-16.

Outback

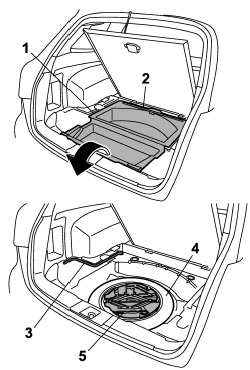

1) Under-floor storage compartment (Refer to “Under-floor storage compartment” F6-18.)
2) Electronic parking brake release tool
3) Jack handle
4) Spare tire
5) Tool bucket

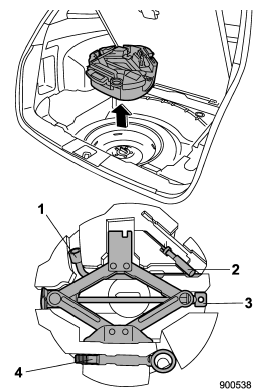

1) Wheel nut wrench
2) Screwdriver
3) Jack
4) Towing hook (eye bolt) (if equipped)

The jack handle is stored under the cargo area. The electronic parking brake release tool is stored under the floor of the cargo area. The other tools are stored in the tool bucket that is located in the recess of the spare tire wheel.

For the method to use the jack, refer to “Flat tires” F9-6.

For the method to use the electronic parking brake release tool, refer to “Electronic parking brake – if the electronic parking brake cannot be released” F9-16.
