Introduction

The load carrying capacity of your vehicle is determined by factors such as the number of passengers, the amount of cargo, the weight of any accessories that may be installed, etc.

To increase loading space, the rear seat backrests can be folded down, see page 91.

When loading the trunk, keep the following in mind:

The trunk lid can be unlocked an popped open slightly via the button located on the lighting panel, see page 69.

• Load objects in the trunk against the backrest whenever possible.
• Unstable loads can be secured to the load anchoring eyelets with straps or web lashings to help keep them from shifting.
• Stop the engine and apply the parking brake when loading or unloading long objects. The gear selector can be knocked out of position by long loads, which could set the vehicle in motion.

WARNING

• Stop the engine, put the gear selector in P, and apply the parking brake when loading or unloading long objects.
• The vehicle's driving characteristics may change depending on the weight and distribution of the load.
• A 44-pound (20 kg) object produces a force of 2,200 pounds (1,000 kg) in a head-on collision at 30 mph (50 km/h).
• The rear seat should not be loaded to a level higher than 2 in. (5 cm) below the upper edge of the rear side windows. Objects placed higher than this level could impede the function of the Volvo Inflatable Curtain.

Folding down the rear seat backrests

The rear seat backrests can be folded down for additional loading space, see page 92.

Load anchoring eyelets

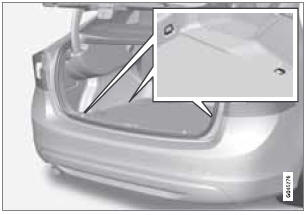

The load anchoring eyelets on both sides of the vehicle are used to fasten straps, etc., to help anchor items in the trunk.

WARNING

• Cover sharp edges on long loads to help prevent injury to occupants. Secure the load to help prevent shifting during sudden stops.
• Always secure large and heavy objects with a seat belt or cargo retaining straps.
• Always secure the load to help prevent it from moving in the event of sudden stops.
• Switch off the engine, apply the parking brake and put the gear selector in P when loading and unloading the vehicle.

Grocery bag holder

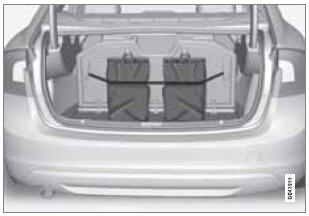

Grocery bag holder under the floor of the trunk

The grocery bag holder holds shopping bags in place.

1. Open the hatch in the floor of the trunk.

2. Secure the shopping bags with the strap.

Ski hatch

There is a hatch in the right section of the rear seat backrest that can be opened for transportation.

1. Fold the right backrest forward.
2. Release the hatch in the rear seat backrest by sliding the catch up while folding the hatch forward.
3. Return the backrest to the upright position with the hatch open.

Use the seat belt to prevent the load from moving.

WARNING

• Always secure the load to help prevent it from moving in the event of sudden braking.
• Switch off the engine, apply the parking brake and put the gear selector in P when loading and unloading the vehicle.

The cover on the rear seat armrest/child seat has no hinge. The cover must be removed before the ski hatch is used.

Removal:

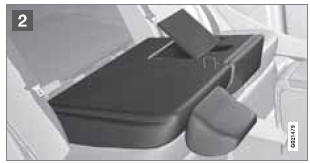

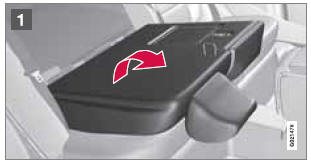

Open the cover 30 degrees and lift straight up.

Installation:

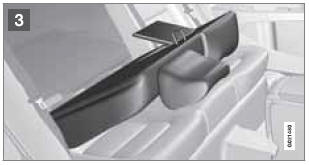

Insert the cover in the grooves behind the upholstery and close the cover.

Roof loads

Using load carriers

Load carriers are available as Volvo accessories. Observe the following points when in use:

• To avoid damaging your vehicle and to achieve maximum safety when driving, we recommend using the load carriers that Volvo has developed especially for your vehicle.
• Volvo-approved removable roof racks are designed to carry the maximum allowable roof load for this vehicle: 220 lbs (100 kg). For non-Volvo roof racks, check the manufacturer's weight limits for the rack.
• Never exceed the rack manufacturer's weigh limits and never exceed the maximum rated roof load of 220 lbs (100 kg).
• Avoid single-point loads. Distribute loads evenly.
• Place heavier cargo at the bottom of the load.
• Secure the cargo correctly with appropriate tie-down equipment.
• Check periodically that the load carriers and load are properly secured.
• Remember that the vehicle's center of gravity and handling change when you carry a load on the roof.
• The vehicle's wind resistance and fuel consumption will increase with the size of the load.
• Drive smoothly. Avoid rapid starts, fast cornering and hard braking.
