• Lighting panel
• High/low beam headlights
• Parking lights
• Rear fog light
• Interior lighting, front
• Interior lighting, rear
• Home safe lighting
• Approach lighting

Lighting panel

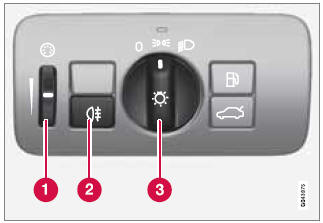

Overview, light switches

1 - Thumb wheel for adjusting display and instrument lighting

2 - Rear fog light

3 - Headlights/parking lights

Instrument lighting

Illumination of the display and instrument lights will vary, depending on ignition mode.

The display lighting is automatically subdued in darkness and the sensitivity is set with the thumb wheel.

The intensity of the instrument lighting is adjusted with the thumb wheel.

High/low beam headlights

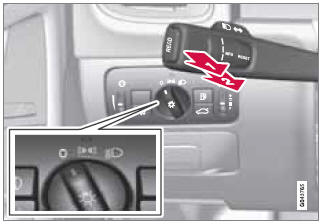

Headlight switch and lever

1 - High beam flash

2 - Toggle between high and low beams

High beam flash

Move the lever toward the steering wheel to position 1. The high beams come on until the lever is released.

High/low beam headlights

Continuous high beams

1. Set the ignition to mode II.

2. With the light switch in position 0 or , pull the turn signal lever toward the steering wheel to position 2 to toggle between high and low beams (this also applies on models equipped with the optional Active Bending Lights). > The symbol illuminates in the instrument panel to indicate that the high beams are on.

Low beams

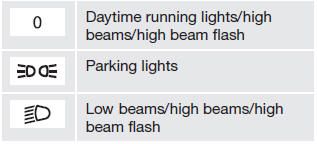

When the engine is started, the low beams are activated automatically (daytime running lights) if the headlight control is in position 0 or .

Daytime running lights can be deactivated in the MY CAR menu system under Settings - Car settings - Light settings - Daytime running lights.

However, please be aware that these lights may not be deactivated in Canada.

NOTE

• The use of daytime running lights is mandatory in Canada.
• Continuous high beams cannot be activated when the headlight switch is in position . High beam flash will function in this position.

Active Bending Lights (ABL)*

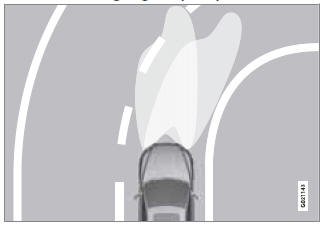

Headlight pattern with the Active Bending Light function deactivated (left) and activated (right)

When this function is activated, the headlight beams adjust laterally to help light up a curve according to movements of the steering wheel (see the right-pointing beam in the illustration).

ABL is activated automatically1 when the engine is started.

The function can be deactivated/reactivated in the MY CAR menu system under My S60 Active Bending Lights or under Settings Car settings Light settings Active Bending Lights.

See page 133 for a description of the menu system.

NOTE

This function is only active in twilight or dark conditions, and only when the vehicle is in motion.

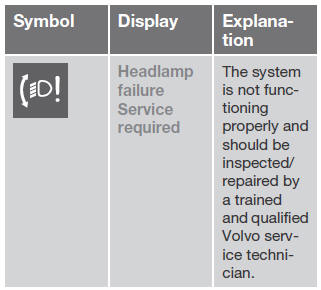

If a fault should occur in the system, the symbol will illuminate and a message will be displayed as shown in the table.

Parking lights

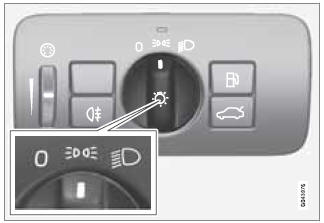

Headlight control in position for parking lights

The parking lights (the license plate lights also come on) can be turned on even when the ignition is switched off.

Turn the headlight control to the center position (the license plate lighting comes on at the same time).

The lighting also comes on when the trunk is opened in order to alert anyone traveling behind your vehicle.

Rear fog light

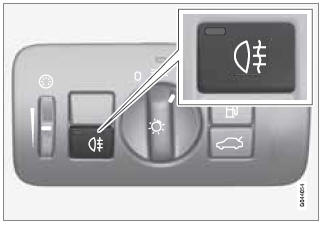

The single rear fog light is located in the driver's side taillight cluster. The rear fog light will only function in combination with the high/low beam headlights.

Press the button to switch the rear fog light on/off.

> The rear fog light indicator symbol on the instrument panel and the light in the button come on when the rear fog light is switched on.

NOTE

The rear fog light is considerably brighter than the normal taillights and should be used only when conditions such as fog, rain, snow, smoke or dust reduce visibility for other vehicles to less than 500 ft. (150 meters).

Interior lighting, front

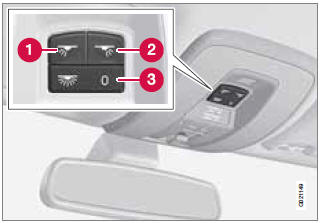

Light switches, front roof lighting

1 - Drivers side front reading light, on/off

2 - Passenger's side front reading light, on/off

3 - Overhead courtesy lighting.

The lighting in the front part of the passenger compartment is controlled with the buttons (1) and (2) in the roof console.

Switch (3) has three positions for all passenger compartment lighting:

• Off: right side depressed, automatic lighting off.
• Neutral position: automatic lighting is on.
• On – left side depressed, passenger compartment lighting on.

Interior lighting, rear

Rear reading lights

The lights are switched on or off by pressing each respective button.

Courtesy lights/door step lighting*

The courtesy lights/door step lighting switch on/off automatically when one of the front doors is opened/closed.

Glove compartment lighting

The glove compartment lighting switches on/ off automatically when the lid is opened/ closed.

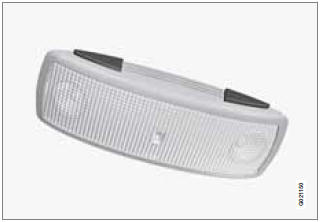

Overhead courtesy lighting

The passenger compartment lighting is switched on and off automatically when button (3) is in the neutral position.

The lighting comes on and remains on for 30 seconds if:

• the vehicle is unlocked from the outside with the key or remote control
• the engine is switched off and the ignition is in mode 0.

The lighting switches off when:

• the engine is started
• the vehicle is locked from the outside.

The lighting comes on and remains on for two minutes if one of the doors is open.

The passenger compartment lighting can be switched on and off manually within 30 minutes after the vehicle has been unlocked.

If the lighting is switched on manually and the vehicle is locked, the courtesy lighting will switch off automatically after one minute.

Trunk lighting

The trunk lighting comes on automatically when the trunk lid is opened.

Home safe lighting

When you leave your vehicle at night, you can make use of the home safe lighting function to illuminate the area in front of the vehicle.

1. Remove the key from the ignition slot.

2. Pull the turn signal lever as far as possible towards the steering wheel and release it.

3. Exit the vehicle and lock the doors.

The headlights, parking lights, turn signals, lights in the door mirrors, license plate lights, and footwell lighting will illuminate and remain on for 30 2, 60 or 90 seconds. The time interval can be set in MY CAR under Settings - Car settings - Light settings - Home safe light duration. See page 133 for a description of the menu system.

Approach lighting

Approach lighting is activated by pressing the approach light button on the remote key (see the illustration on page 57).

When the function has been activated, the parking lights, indicator lights, door mirror lights, license plate lighting, dome lighting and door step lighting come on.

The time interval for this lighting can be set by pressing MY CAR and going to Car settings - Light settings - Approach light duration. See page 133 for a description of the menu system.
