Volvo S60: Fuses

Volvo S60: Fuses

• Replacing fuses
• Location of the fuse boxes
• Engine compartment
• Cargo area

Replacing fuses

There are relay/fuse boxes located in the engine compartment, the passenger compartment, and the trunk.

If an electrical component fails to function, this may be due to a blown fuse. The easiest way to see if a fuse is blown is to remove it.

To do so:

1. Pull the fuse straight out. If a fuse is difficult to remove, a special fuse removal tool is located on the inside of the engine compartment fuse box cover.

2. From the side, examine the curved metal wire in the fuse to see if it is intact.

If the wire is broken, insert a new fuse of the same color and amperage (written on the fuse).

If fuses burn out repeatedly, have the electrical system inspected by a trained and qualified Volvo service technician.

WARNING

Never use metal objects or fuses with higher amperage than those stated on the following pages. Doing so could seriously damage or overload the vehicle's electrical system.

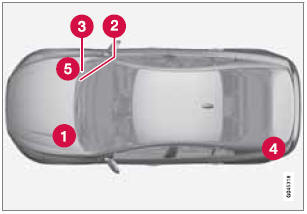

Location of the fuse boxes

1. Engine compartment
2. Under the glove compartment
3. Under the glove compartment
4. Trunk
5. Not in use

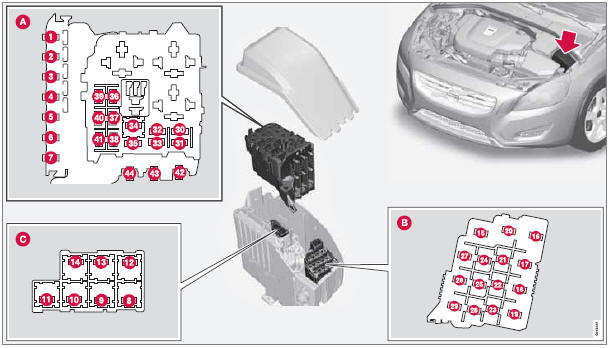

Engine compartment

A - Engine compartment, upper

B - Engine compartment, front

C - Engine compartment, lower

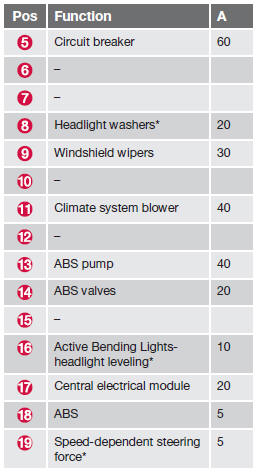

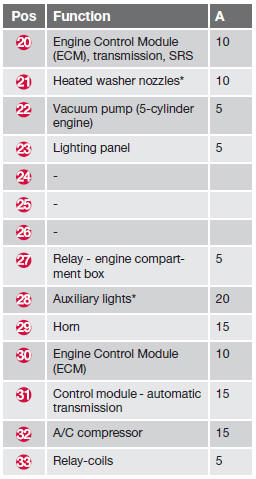

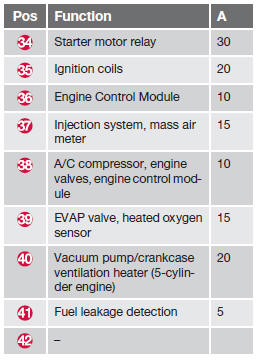

Positions

These fuses are all located in C the engine compartment box. Fuses in are located under A.

NOTE

• Fuses 16 – 33 and 35 – 41 may be changed at any time when necessary.
• Fuses 1 – 15, 34 and 42 – 44 are relays/ circuit breakers and should only be removed or replaced by a trained and qualified Volvo service technician.
• There is a special fuse removal tool on the underside of the cover.

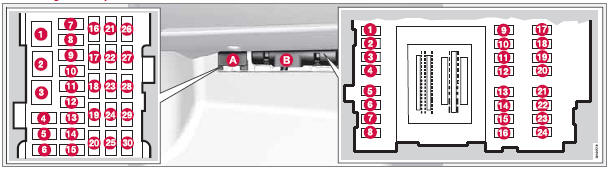

Under the glove compartment

boxes.

1. Press the cover's lock and fold it up.

2. The fuses are accessible.

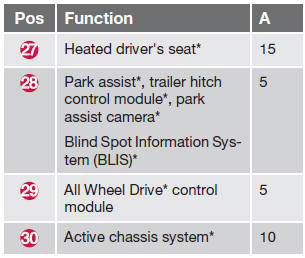

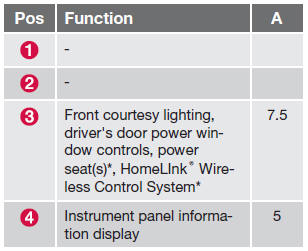

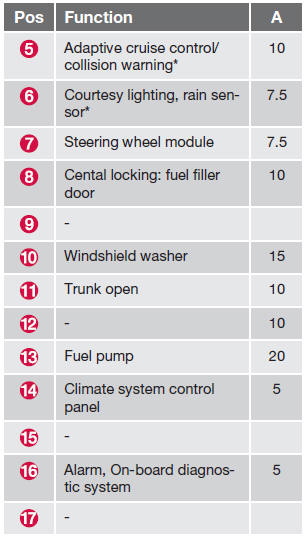

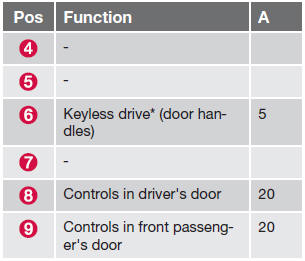

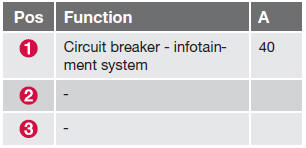

Positions-fuse box A

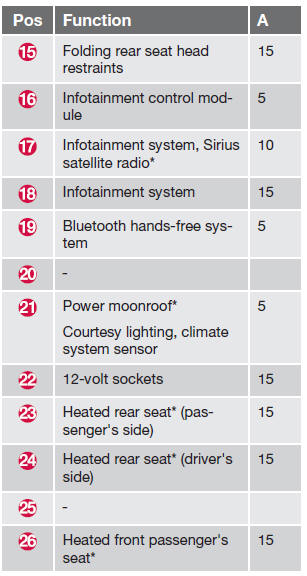

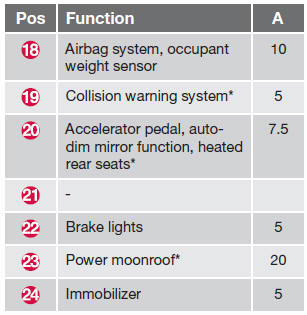

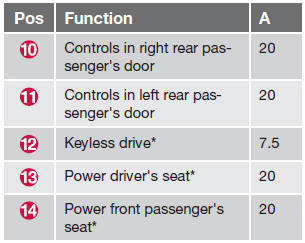

Positions-fuse box B

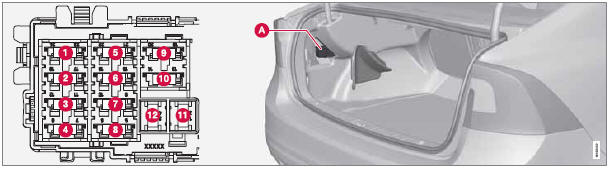

Cargo area

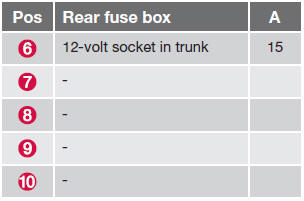

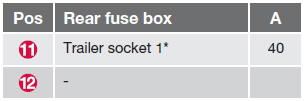

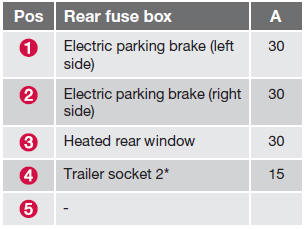

Positions

NOTE

Please consult a Volvo retailer’s Parts department for the most up-to-date specifications.
