Volvo S60: Engine oil

Volvo S60: Engine oil

• Checking the engine oil
• Checking and adding oil

Checking the engine oil

The oil level should be checked at regular intervals, particularly during the period up to the first scheduled maintenance service.

• See page 339 for oil specifications.
• Refer to the Warranty and Service Records Information booklet for information on the oil change intervals.

CAUTION

• Not checking the oil level regularly can result in serious engine damage if the oil level becomes too low.
• Oil that is lower than the specified quality can damage the engine.
• Volvo does not recommend the use of oil additives.
• Always add oil of the same type and viscosity as already used.
• Never fill oil above the MAX mark. This could cause an increase in oil consumption.
• Oil changes should be carried out by a trained and qualified Volvo service technician.

Checking and adding oil

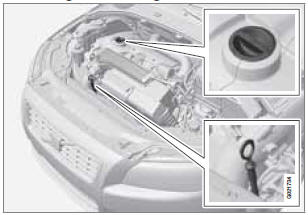

Location of the filler cap and dipstick

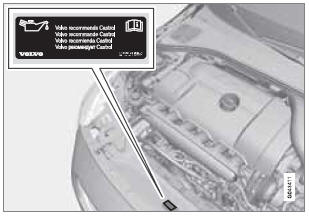

Volvo recommends Castrol oil products

NOTE

Before checking the oil:

• The car should be parked on a level surface.
• If the engine is warm, wait for at least 10 – 15 minutes after the engine has been switched off.

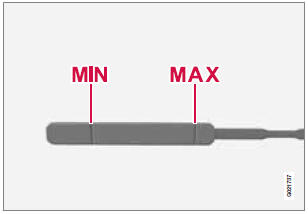

The oil level must be between the MIN and MAX marks on the dipstick

Checking the oil

1. Pull out the dipstick and wipe it with a lintfree rag.

2. Reinsert the dipstick, pull it out, and check the oil level. The level must be between the MIN and MAX marks.

3. Add oil if necessary. If the level is close to the MIN mark, add approximately 0.5 US quarts (0.5 liters) of oil.

4. Recheck the level and add more oil if necessary until the level is near the MAX mark.

WARNING

Do not allow oil to spill onto or come into contact with hot exhaust pipe surfaces.

NOTE

Synthetic oil is not used when the oil is changed at the normal maintenance intervals except at owner request and at additional charge. Please consult your Volvo retailer.
