Ford Fusion: Engine compartment overview - 1.6L Duratorq-TDCi (DV) Diesel - Maintenance - Ford Fusion Owners manualFord Fusion: Engine compartment overview - 1.6L Duratorq-TDCi (DV) Diesel

Ford Fusion / Ford Fusion Owners manual / Maintenance / Engine compartment overview - 1.6L Duratorq-TDCi (DV) Diesel

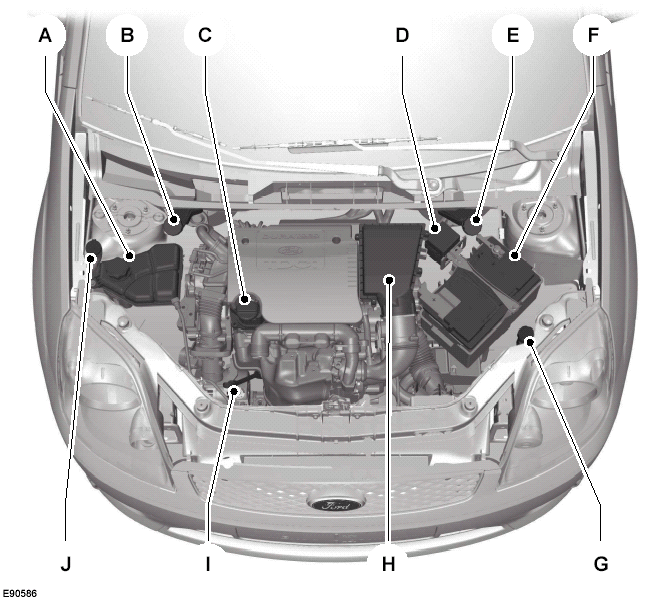

A. Engine coolant reservoir*: See Engine coolant check.

A. Engine coolant reservoir*: See Engine coolant check.

B. Brake and clutch fluid reservoir (right-hand drive)*: See Brake and clutch fluid check.

C. Engine oil filler cap*: See Engine oil check.

D. Engine compartment fuse box. See Fuses.

E. Brake and clutch fluid reservoir (right-hand drive)*: See Brake and clutch fluid check.

F. Battery: No maintenance necessary.

G. Windscreen and rear window washer fluid reservoir: See Washer fluid check.

H. Air cleaner: No maintenance necessary.

I. Engine oil dipstick*: See Engine oil check.

J. Power steering fluid reservoir: See Power steering fluid check.

* The filler caps and the engine oil dipstick are coloured for easy identification.
