Kia Optima: Engine compartment - Your vehicle at a glance - Kia Optima Owners ManualKia Optima: Engine compartment

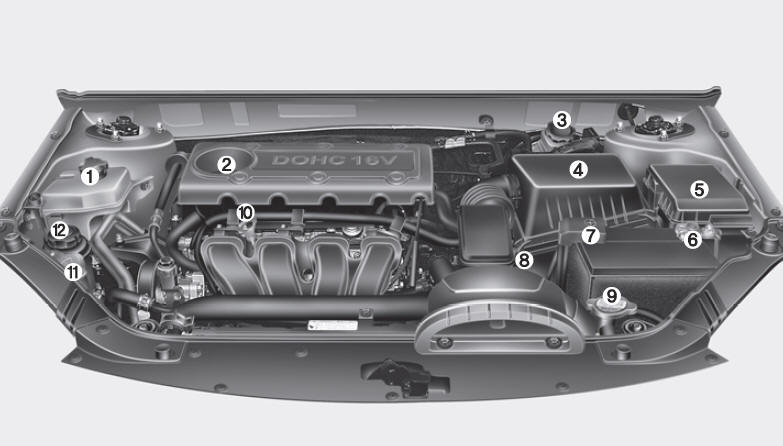

(2.4L) 1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake fluid reservoir Gasoline Engine (2.4L) 1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake fluid reservoir 4. Air cleaner 5. Fuse box 6. Negative battery terminal 7. Positive battery terminal 8. Auto transaxle oil dipstick* 9. Radiator cap 10. Engine oil dipstick 11. Windshield washer fluid reservoir 12. Power steering fluid reservoir* * : if equipped

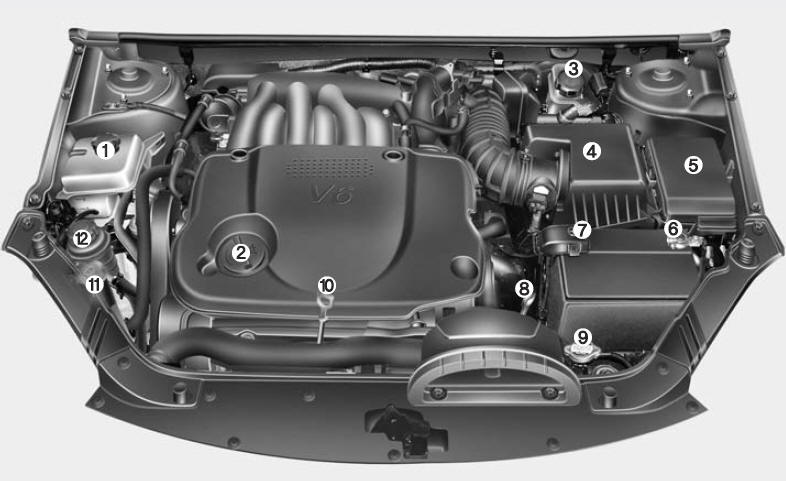

(2.7L) 1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake fluid reservoir Gasoline Engine (2.7L) 1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake fluid reservoir 4. Air cleaner 5. Fuse box 6. Negative battery terminal 7. Positive battery terminal 8. Auto transaxle oil dipstick* 9. Radiator cap 10. Engine oil dipstick 11. Windshield washer fluid reservoir 12. Power steering fluid reservoir* * : if equipped

    Instrument panel overview
    1. Driver’s Air Bag* 2. Light control / Turn signals 3. Instrument cluster 4. Wiper/Washer 5. Ignition switch 6. Digital clock 7. Hazard 8. Audio controls* 9. Climate control system 10. Shift ...
