Nissan Maxima: Dual Panel Moonroof (if so equipped)

Nissan Maxima: Dual Panel Moonroof (if so equipped)

The moonroof will only operate when the ignition switch is in the ON position. The automatic moonroof is operational for about 45 seconds, even if the ignition switch is placed in the ACC or OFF position. If the drivers door or the front passengers door is opened during this period of about 45 seconds, power to the moonroof is canceled.

Sliding the moonroof

To slide the moonroof:

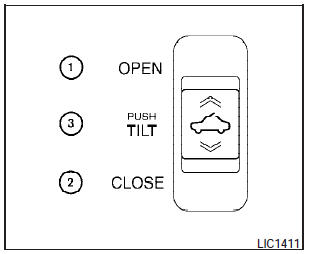

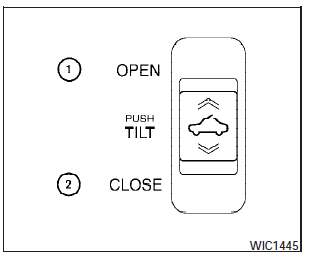

- To fully open the moonroof, push the switch (1) toward the open position until it reaches the second detent. If the switch (1) is pushed to the first detent, only the sunshade will open.

- To fully close the moonroof, push the switch  (2)- toward the close position until it reaches the second detent. If the switch (2)- is pushed to the first detent, the moonroof will close but the sunshade will remain open.

- To open or close the moonroof part way, release the switch (1) or (2)- while the moonroof is sliding open or closed. The moonroof will stop at the desired position.

Tilting the moonroof

To tilt the moonroof:

- To tilt the moonroof up, push and release the tilt switch (3). When the moonroof is open, it will automatically close and then tilt up.

- To tilt the moonroof down, push and release the tilt switch (3)- or push the switch (2)- toward the close position until it reaches the first detent.

- To tilt the moonroof down and close the sunshade at the same time, push the switch  (2)- to the close position until it reaches the second detent.

Auto-reverse function (when closing or tilting down the moonroof)

The auto-reverse function can be activated when the moonroof is closed or tilted down by automatic operation when the ignition switch is placed in the ON position or for about 45 seconds after the ignition switch is placed in the OFF position.

Depending on the environment or driving conditions, the auto-reverse function may be activated if an impact or load similar to something being caught in the moonroof occurs.

WARNING:

There are some small distances immediately before the closed position which cannot be detected. Make sure that all passengers have their hands, etc., inside the vehicle before closing the moonroof.

When closing:

If the control unit detects something caught in the moonroof as it moves to the front, the moonroof will immediately open backward.

When tilting down:

If the control unit detects something caught in the moonroof as it tilts down, the moonroof will immediately tilt up.

If the auto-reverse function malfunctions and repeats opening or tilting up the moonroof, keep pushing the tilt down switch within 5 seconds after it happens; the moonroof will fully close gradually. Make sure nothing is caught in the moonroof.

WARNING:

- Do not allow anyone to stand up or extend any portion of their body out of the moonroof opening while the vehicle is in motion or while the moonroof is closing.

CAUTION:

- Do not place heavy objects on the moonroof or surrounding area.

 Sunshade

To open the sunshade:

- To fully open the sunshade, push the switch (1) toward the open position until it reaches the first detent.

- To fully open the sunshade and the moonroof together, push the switch (1) toward the open position until it reaches the second detent.

To close the sunshade:

- To fully close the sunshade, push the switch  (2)- toward the close position until it reaches the second detent.

- Pushing the switch (2)- to the first detent will close the moonroof only.

If the moonroof does not close

Have your NISSAN dealer check and repair the moonroof.
