Hyundai Sonata: Door locks

Hyundai Sonata: Door locks

• Operating door locks from outside the vehicle
• Operating door locks from inside the vehicle
• Impact sensing door unlock system (if equipped)
• Child-protector rear door lock

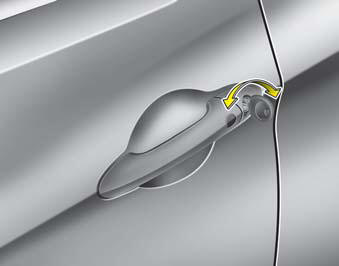

Operating door locks from outside the vehicle

• Turn the key toward the rear of the vehicle to unlock and toward the front of the vehicle to lock.

• If you lock the door with a key, all vehicle doors will lock automatically.

• From the driver’s door, turn the key toward the rear of the vehicle once to unlock the driver’s door and once more within 4 seconds to unlock all doors.

• Doors can also be locked and unlocked with the transmitter (or smart key).

• Once the doors are unlocked, they may be opened by pulling the door handle.

• When closing the door, push the door by hand. Make sure that doors are closed securely.

NOTICE

• In cold and wet climates, door locks and door mechanisms may not work properly due to freezing conditions.

• If the door is locked/unlocked multiple times in rapid succession with either the vehicle key or door lock switch, the system may stop operating temporarily in order to protect the circuit and prevent damage to system components.

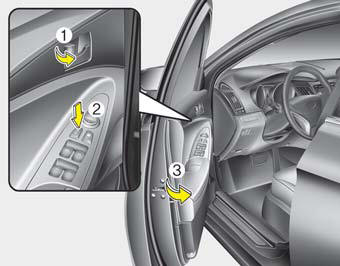

• To lock a door without the key, push the inside door lock button (1) or central door lock switch (2) to the “Lock” position and close the door (3).

NOTICE

Always remove the ignition key, engage the parking brake, close all windows and lock all doors when leaving your vehicle unattended.• If you lock the door with the central door lock switch (2), all vehicle doors will lock automatically.

Operating door locks from inside the vehicle

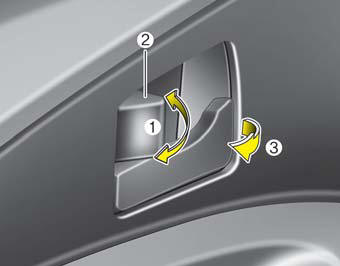

With the door lock button

• To unlock a door, push the door lock button (1) to the “Unlock” position. The red mark (2) on the button will be visible.

• To lock a door, push the door lock button (1) to the “Lock” position. If the door is locked properly, the red mark (2) on the button will not be visible.

• To open a door, pull the door handle (3) outward.

• If the inner door handle of the front door is pulled when the door lock button is in lock position, the button is unlocked and door opens.

• Front door cannot be locked if the ignition key is in the ignition switch and the door is open.

• A door cannot be locked if the smart key is in the vehicle and any door is open.

WARNING - Door lock malfunction

If a power door lock ever fails to function while you are in the vehicle, try one or more of the following techniques to exit:

• Operate the door unlock feature repeatedly (both electronic and manual) while simultaneously pulling on the door handle.

• Operate the other door locks and handles, front and rear.

• Lower a front window and use the key to unlock the door from outside.

Driver’s door

Passenger’s door

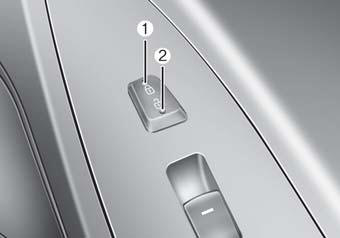

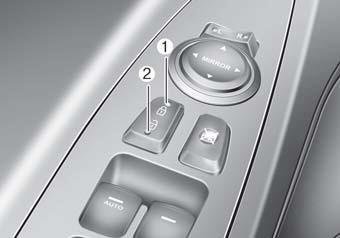

With central door lock switch

Operate by depressing the central door lock switch.

• When pushing down on the front portion (1) of the switch, all vehicle doors will lock.

• When pushing down on the rear portion (2) of the switch, all vehicle doors will unlock.

• If the key is in the ignition switch and front door is open, the doors will not lock even though the front portion (1) of central door lock switch is pressed.

• If the smart key is in the vehicle and any door is open, the doors will not lock even though the front portion(1) of central door lock switch is pressed.

WARNING - Doors

• The doors should always be fully closed and locked while the vehicle is in motion to prevent accidental opening of the door.

Locked doors will also discourage potential intruders when the vehicle stops or slows.

• Be careful when opening doors and watch for vehicles, motorcycles, bicycles or pedestrians approaching the vehicle in the path of the door. Opening a door when something is approaching can cause damage or injury.

WARNING - Unlocked vehicles

Leaving your vehicle unlocked can invite theft or possible harm to you or others from someone hiding in your vehicle while you are gone. Always remove the ignition key, engage the parking brake, close all windows and lock all doors when leaving your vehicle unattended.

WARNING - Unattended children

An enclosed vehicle can become extremely hot, causing death or severe injury to unattended children or animals who cannot escape the vehicle. Furthermore, children might operate features of the vehicle that could injure them, or they could encounter other harm, possibly from someone gaining entry to the vehicle. Never leave children or animals unattended in your vehicle.

Impact sensing door unlock system (if equipped)

All doors will be automatically unlocked when the impact is delivered to impact sensors while the ignition switch is ON.

However, the doors may not be unlocked if mechanical problems occur with the door lock system or battery.

NOTICE

You can activate or deactivate some auto door lock/unlock features in the vehicle setting as follows;

• Speed sensing auto door lock
• Auto door unlock by unlocking the driver's door
• Auto door unlock when the ignition key is removed from the ignition switch or the smart key is removed from the smart key holder.
• Auto door lock/unlock by shifting the transmission shift lever out of P (Park) or into P (Park)

If you want to activate or deactivate some door lock/unlock feature, refer to the “vehicle setting” in this chapter.

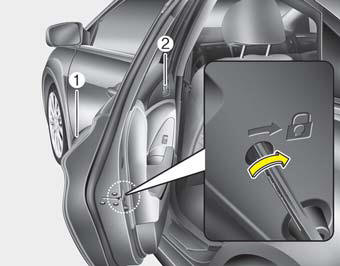

Child-protector rear door lock

The child safety lock is provided to help prevent children from accidentally opening the rear doors from inside the vehicle. The rear door safety locks should be used whenever children are in the vehicle.

1. Open the rear door.

2. Insert a key (or screwdriver) into the hole and turn it to the lock ( ) position. When the child safety lock is in the lock position, the rear door will not open even when the inner door handle is pulled.

3. Close the rear door.

To open the rear door, pull the outside door handle (1).

Even though the doors may be unlocked, the rear door will not open by pulling the inner door handle (2) until the rear door child safety lock is unlocked.

WARNING - Rear door locks

If children accidentally open the rear doors while the vehicle is in motion, they could fall out of the vehicle, resulting in severe injury or death. To prevent children from opening the rear doors from the inside, the rear door safety locks should be used whenever children are in the vehicle.
