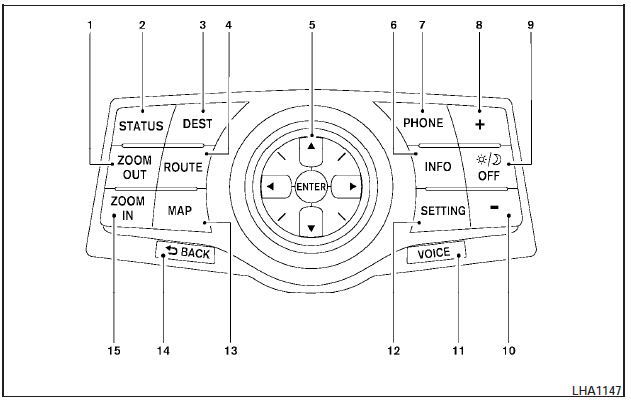

1. ZOOM OUT button*.

1. ZOOM OUT button*.

2. STATUS button.

3. DEST button*.

4. ROUTE button*.

5. NISSAN controller.

6. INFO button.

7. PHONE button**.

8. + (brightness control) button.

9. OFF brightness control button.

10. - (brightness control) button.

11. VOICE button*.

12. SETTING button.

13. MAP button*.

14. BACK (previous) button.

15. ZOOM IN button*.

*For Navigation system control buttons, refer to the separate Navigation System Owners Manual.

**For information on the PHONE button, see Bluetooth Hands-Free Phone System with Navigation System in this section.

When you use this system, make sure the engine is running.

If you use the system with the engine not running (ignition ON or ACC) for a long time, it will discharge the battery, and the engine will not start.

Reference symbols:

ENTER button This is a button on the control panel.

Example - Words marked in quotes refer to a key shown only on the display. These keys can be selected by touching the screen or using the NISSAN controller.

    How to use the SETTING button
    When the SETTING button is pressed, the Settings screen will appear on the display. You can select and/or adjust several functions, features and modes that are available for your vehicle. Use th ...

    How to use the NISSAN controller
    Use the NISSAN controller to choose an item on the display screen. Highlight an item on the display using the main directional buttons (2)- (certain Navigation System functions use the additiona ...
