Honda Accord: Auxiliary Input Jack

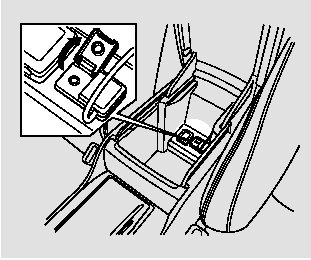

The auxiliary input jack is inside the console compartment. The system will accept auxiliary input from standard audio accessories using a 1/8 inch (3.5 mm) stereo miniplug.
When you plug in amini-jack cable between a compatible audio unit and the jack, you will see AUX in the display and the system automatically switches to AUX mode.
When a compatible audio unit is connected to the jack, press the AUX or CD/AUX button to select it.
Remote Audio Controls
Three controls for the audio system
are mounted in the steering wheel
hub. These let you control basic
functions without removing your
hand from the wheel.
The VOL button adjusts the volume ...
Radio Theft Protection
Your vehicle’s audio system may
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, you must
enter a specific five-digit code with
the preset b ...
See also:
When the System Does Not
Seem to Work Properly
The RVC system may not work
properly or display a clear image if:
• The RVC is turned off. See
“Turning the Rear Camera
System On or Off” earlier in this
section.
• It is dark.
• ...
Child safety locks
WARNING
Always turn the child safety locks to the “LOCK” position when children sit on
the rear seat. Serious injury could result if a child accidentally opens the door
and falls out.
Each ...
Using the image viewer
When a compatible portable storage device is plugged into the USB jack located
in the center console, compatible image files stored on the device can be viewed
on the control panel device.
Connec ...
