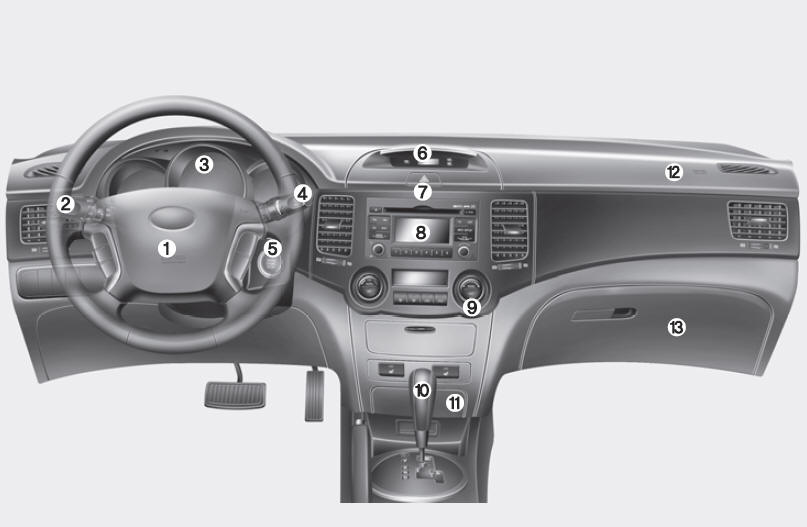

Kia Optima: Instrument panel overview
1. Driver’s Air Bag* 2. Light control / Turn signals 3. Instrument cluster 4. Wiper/Washer 5. Ignition switch 6. Digital clock 7. Hazard 8. Audio controls* 9. Climate control system 10. Shift lever 11. Cigar lighter 12. Passenger’s air bag* 13. Glove box * : if equipped
