Honda Accord: Auxiliary Input Jack

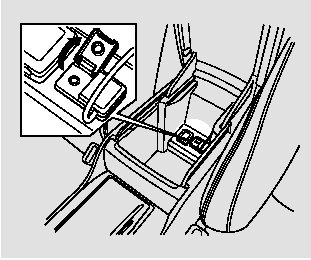

The auxiliary input jack is inside the console compartment. The system will accept auxiliary input from standard audio accessories using a 1/8 inch (3.5 mm) stereo miniplug.
When you plug in amini-jack cable between a compatible audio unit and the jack, you will see AUX in the display and the system automatically switches to AUX mode.
When a compatible audio unit is connected to the jack, press the AUX or CD/AUX button to select it.
Remote Audio Controls
Three controls for the audio system
are mounted in the steering wheel
hub. These let you control basic
functions without removing your
hand from the wheel.
The VOL button adjusts the volume ...
Radio Theft Protection
Your vehicle’s audio system may
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, you must
enter a specific five-digit code with
the preset b ...
See also:
Variable voltage control system
CAUTION
● Do not ground accessories directly to
the battery terminal. Doing so will bypass
the variable voltage control system
and the vehicle battery may not
charge completely.
● ...
Compact disc (CD) changer operation
Place the ignition switch in the ACC or ON position and press the LOAD button,
then press one of the CD insert (1 6) slots. Insert the compact disc into the slot
with the label side facing up. The ...
Exhaust pipe and muffler
Visually inspect the exhaust pipes, muffler and hangers for cracks, deterioration,
or damage. Start the engine and listen carefully for any exhaust gas leakage. Tighten
connections or replace part ...
